Installation and Setup

VisTrak Systems and Installation

Technical Support

Installation and Setup Steps

Download and install the Control Panel software


Download and Run the latest CP update after installing the full version from the tech news page if the update is newer

Important !

If you have recently purchased a new GSA Golf SCX, LX or Eagle system,

then please use one of the links below.

Click the previous installation links further below for all other older sytems

GSA Golf system minimum PC requirements


Intel i5 or above Processor

Warning! Do not use PC's with AMD processors!

8GB RAM Nvidia 1070 Graphics Card or equivalent

25GB of Hard Drive Space

Windows 10 or 11 (Required)

Internet Connection

(Required if using 3rd party game software such as E6, TGC or GSPro)

USB3 ports (Required)

Note: The cameras are USB3 cameras

and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports

at the front of the PC.

USB Ports at the back of the PC don't usually work well


If using 2 cameras, do not connect the cameras together with a Hub !

All cameras must be directly connected to separate USB3 ports on the PC

Use only powered USB3 extension cables if the supplied cables are not long enough

VisTrak camera setup videos

Click above image to view all VisTrak setup YouTube videos

Click above to read

SCX Installation

Click the above button to go to the SCX installation page

Eagle Installation

Click the above button to go to the Eagle installation page

LX/KX Installation

EVi Installation

Ball Spin Setup

Club Detection Setup

Click above to read how the system detects club data with or without reflective stickers

Previous installation links

Click above for previous installation links

VisTrak Golf Game Play

How to play a golf game with the system




VisTrak interfaces with TGC (The Golf Club), GSA ProX, GS Pro, RedChain, E6 1.6 and E6 Connect golf game software.

Select the game software you are using from the radio buttons at top right corner of the Control Panel's main window.

Click the large "Minimize Window" button to start the cameras and connect to the game.

Start your golf game application.

If you haven't already purchased any game software, you can use the supplied GSA 18 hole golf course demo software.

In this case, select the GSA Single Course radio button.

Then click the GSA Golf Demo icon from your PC's desktop

After Clicking the large "Minimize Window" button in the CP,

2 small buttons will show at the top left hand side of the game software.

The system will then start to look for a ball in the Launch Zone area. The top button is then red.

Once a ball has been detected in the Launch Zone area, the button turns green indicating that the system is ready for the swing.

Note: Click "GSA Golf Control Panel" button to go back the expanded CP's main window

Click Show Swing Video to see the last shot video

Note that the ball must always be placed in the launch zone area in order for it to be detected

Once the ball has been detected in both cameras, the system is ready to capture a ball strike and send the data to the game software in order to launch the ball.

VisTrak Lighting options

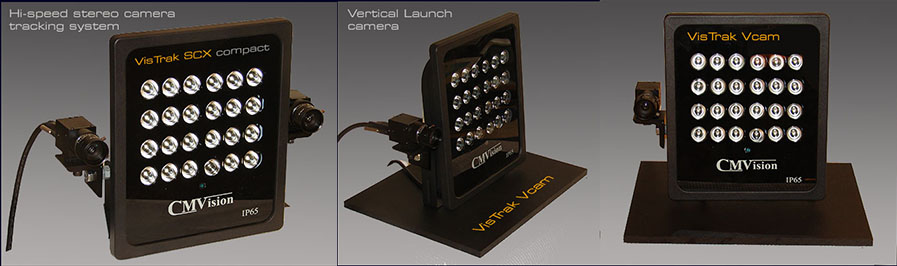

If you have purchased just the cameras, the following lighting is recommended.

IR LED Lighting

CM Vision IRP24-850nm LED IR Array Illuminator

Min 3 required for ceiling mounted SCX and Eagle systems

Max mounting height is 9ft

Note that the power supplies are not included when purchasing on Amazon

You will require 5 amp 12v power supplies for this IR Illuminator

GSA Golf Hi-intensity CM Vision IR narrow beam lights


Price $299 each

(3 required for the SCX)

Track Lighting

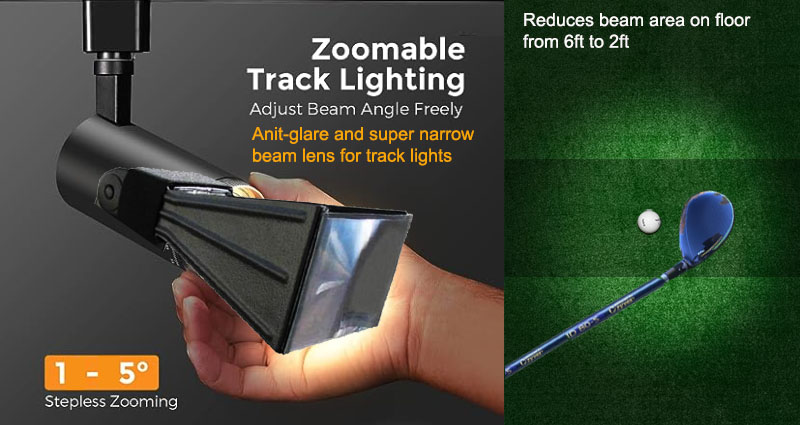

4 hi-power LED zoom-able track light system with 800 Lumens per light with track

Price $199

4 hi-power LED zoom-able track light system with 800 Lumens per light with track with LED light strip system ready indicator

Price $299

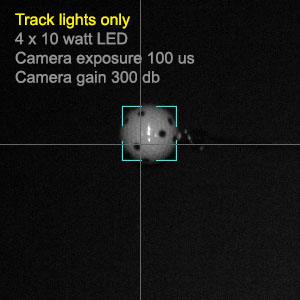

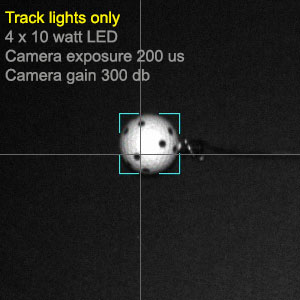

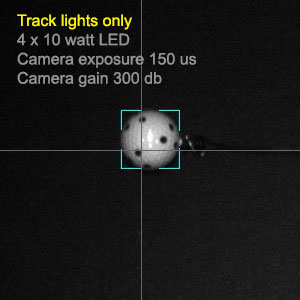

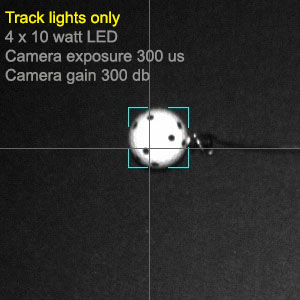

Track lighting image brightness examples

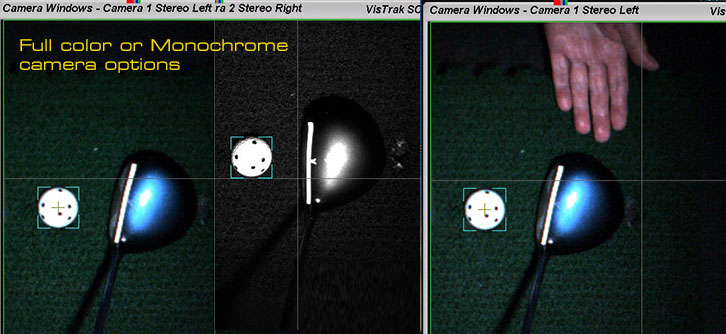

Choose between color or monochrome cameras

Price $39 each

Improving image ball and club detection

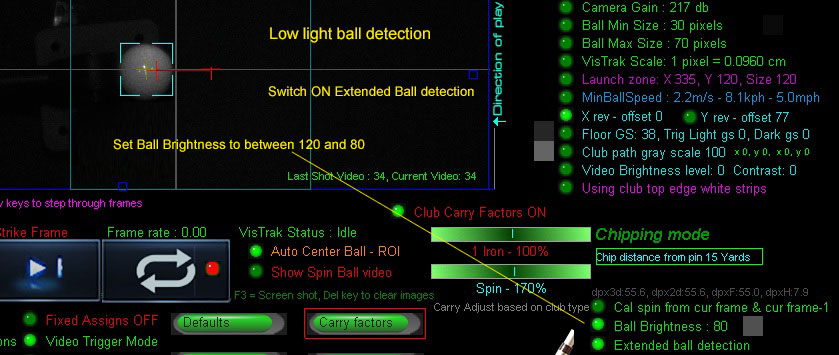

using a lower "Ball Brightness" setting

Use the new "Ball Brightness" setting to improve ball detection without the requirement to adjust contrast settings

Note that this feature is only available as of CP version

The CP Camera window

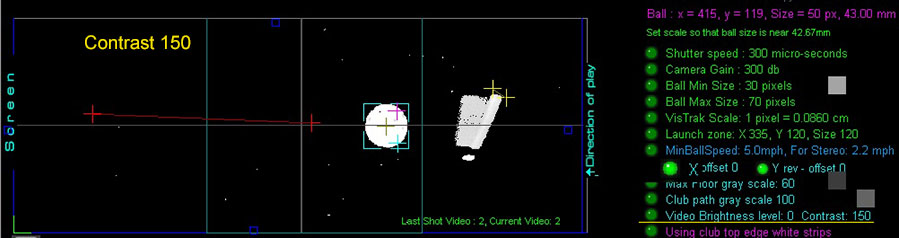

Improving image ball and club detection

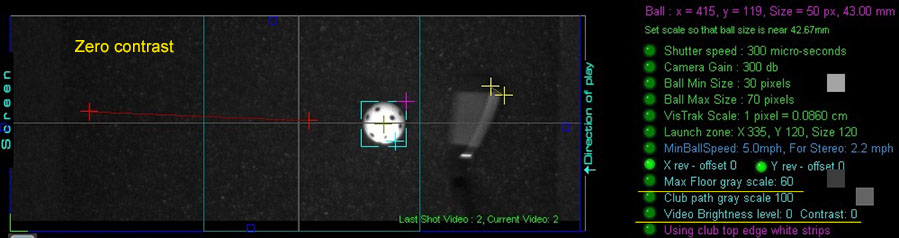

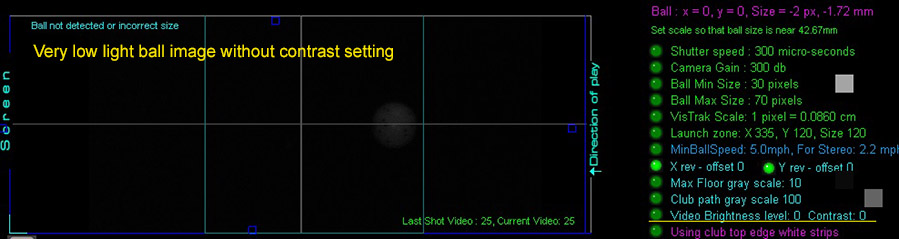

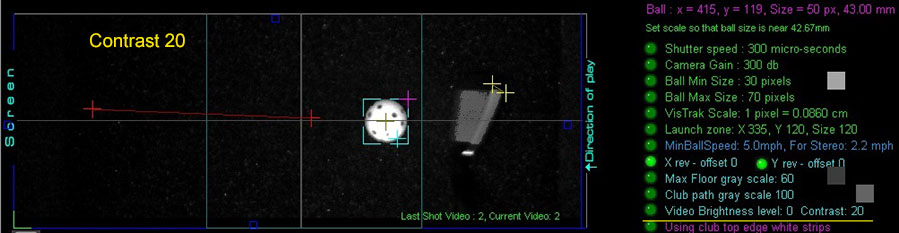

using higher Contrast settings

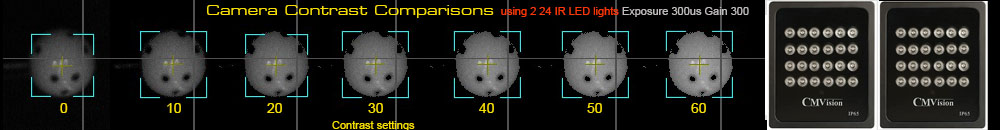

Ball images using 3 24 IR LED lights

Ball images using 2 24 IR LED lights

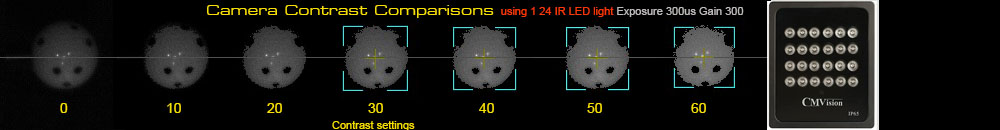

Ball images using 1 24 IR LED light

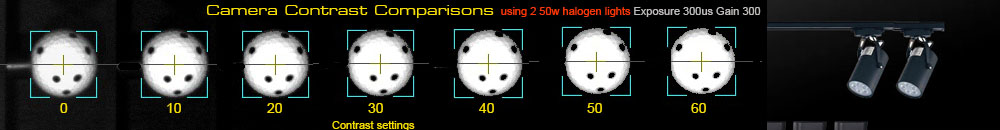

Ball images using 2 50w 12 degree spot halogen lights

As can be seen, just 2 50 watt halogen lights easily out perform the 24 IR LED lights - even without having to increase the contrast settings

When using just one LED light, the "Contrast" setting has to be increased in order that the ball and club is detected

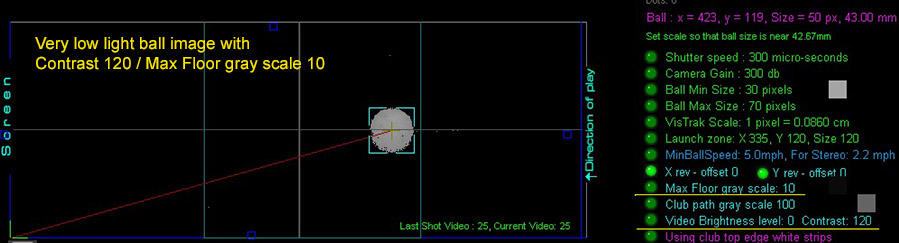

How the Floor GS (Grey Scale) setting effects the brightness/contrast setting.

If your lighting is insufficient to illuminate the ball so that it is detected when using fast shutter speed,

you will have to increase the Brightness/Contrast level.

In so doing, you may find that only the center of the ball is showing an increase in brightness.

This is because the brightness procedure is only increasing the brightness of pixels that have a GS above the floor GS level.

The idea is to only increase the brightness of the ball itself and not the surrounding floor so that a stronger contrast is made between the ball and the floor.

It is thus important that the Floor GS setting is set closer to the actual floor gray scale in order to increase the brightness of the complete ball.

You can also improve ball and club image detection even when using mulitple IR LED or Halogen lighting setups.

Note that if the contrast is set too high, then ball markings will wash out

Fault finding and Issues

Technical Support

Email and remote access support is available for all original purchasers of GSA Golf systems.

E-mail support is free of charge for all original purchasers of GSA Golf systems.

Remote access support is available for all purchasers for $75 per session (max 1 hr per session)

Remote access support requires that you have "TeamViewer" installed on your PC

Go to www.teamviewer.com to get your free team viewer installed

Buy GSA Golf remote support 1 hr session for

Price: $ 75.00


Shot Replay Videos

Important !

If your system is not detecting a valid shot, click the option

"Save non-valid shot videos" ON

in the CP Setup Panel

Retry a shot and make note of the shot Video number being saved.

After a shot, the shot video file name and number is displayed in the CP's main panel

The Vistrak system stores a shot video after every shot.

These shot videos can be re-called by clicking on the video number.

GSA Golf Technical support often requires the user to send us a copy of one or more of these shot videos

as an email attachment for analysis when issues occur.

The shot video files are stored in the C:\GSAgolf folder on your PC

How to make Screen shots

GSA Golf Technical support often requires the user to send us a control panel screen shots

To make a screen shot, press the PrtSc button on your keyboard.

Note: some CP screens have a Screen Shot button too.

This places a copy of the screen image into the PC's Clipboard.

You can then paste the image into the Paint application and save it.


You can then either paste or attach the image in an email to us for analysis

Installing TeamViewer

If you require remote access support, you need to have TeamViewer installed on your PC.

Go to www.TeamViewer.com and download the free version of TeamViewer

When calling us for a remote access support session, have your TeamViewer up and running with your ID and Password being displayed.

Checking Cameras

with the Camera manufacturers applications

Using the HuaTeng Vision application to check the cameras

You can use the HuaTeng Vision application to check that the SSi cameras on your PC are running at the correct speed

Select "Continuous" in the Triiger panel to start grabing frames

Select "Manual" in the Exposure panel.

Set gain to 8.00 and Exposure time to 299 us

You should see at least a camera FPS rate of 790 FPS.

If not, then you are not connecting the cameras to USB3 ports on the front of the PC

or you are using USB2 extension cables

or not using the 5v adapter with the extension cables

Installing the Control Panel software

Follow the download links sent to you via email

The GSA Golf Control Panel (CP) interfaces the cameras to the game software

and performs all the camera image processing to calculate the shot data

Error message when first starting the CP ?

If you see the above error message when first starting the Control Panel (CP)

then your PC requires the VC Redistributable files.

Click on the above image to see an installation video

Download VC redistributables hereHere

The CP main window

The CP Setup Panel
