Flooring and Stance mats Drape enclosures Impact Screens - Custom Impact Screens - Regular Budget enclosures Cage and solid wall enclosures PC's and Projectors

Golf Simulator Screens

GSA Golf Simulator Custom Impact Screens



GSA Golf screen materials for your Studio Enclosure

GSA Golf screen materials

Screen creases and folds

Note that all Carls Place screens (like all other screens from other manufacturers ) that are shipped folded,

will show creases and folds in the screen for the first weeks.

Over time, these creases and folds in the screen should slowly disappear

Screen dents after ball impact

Like all other golf impact screens, small ball impact dents in the screen may appear in the screen.

These too should eventually disappear

Bungee cords

Warning: All screens have to be attached to whatever frame you are using via bungees

in order to allow for give in the screen during ball impact.

Do not attach screens directly to a frame with cable ties or screws.

Doing this will likely cause the screen to rip and tear

Home theater quality premium screen image impact screens

Standard size screens from $299

Click above image to read more

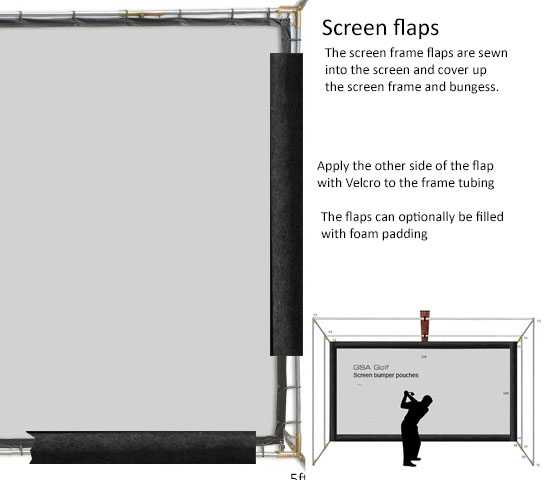

Screen edging

Additional Velcro Loop edge finish: $ 69



Additional Pouch edge finish: $ 169

The pouches can be filled with foam padding

see further below to purchase foam for flaps


Golf Simulator Impact Projection Screens

Note: Current lead time for custom made screens is around 10 to 14 days

When ordering impact screens,

drop us an email stating what size (height and width) you require and the space you have (width and height) for the screen with the frame.

All screens are custom made to your size requirements.

Screen warranties

Note that all golf impact screens have a limited life span and, while screens should last many years, they will eventually wear out.

Like all other golf impact screen manufactures, GSA Golf offer no warranties on the durability and life span of the screens.

Screen creases and folds

Note that all screens (like all other screens from other manufacturers ) that are shipped folded,

will show creases and folds in the screen for the first weeks.

Over time, these creases and folds in the screen should slowly disappear

Screen dents after ball impact

Like all other golf impact screens, small ball impact dents in the screen may appear in the screen.

These too should eventually disappear

Please note !

Screen sizes include the 2.5” edging and grommets that go all around the screen.

i.e. the size is not just the white part of the screen.

So take this into account when ordering your screen size.

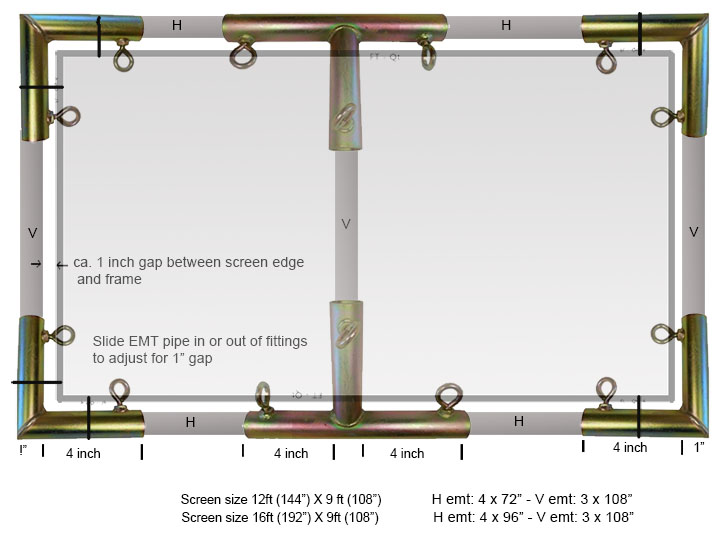

Frame size to Screen size

The frame should be around 2 inches per side greater than the screen size.

i.e. if the screen size is 12 ft x 9 ft (144" x 108") then the frame should be 12ft 4" x 9ft 4" (148" x 112").

Ensure that your room size takes into account that the screen on the frame will be 2 inches greater on all 4 sides.

Let us know what space you have for the screen and we'll work out what the actual screen size will be for you.

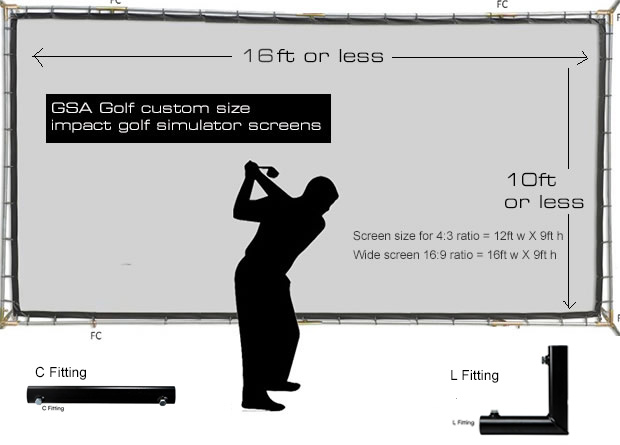

GSA Golf standard material custom size impact projection screens with edging, grommets and bungee cords.

Note: max height of screen is 10 feet. When ordering call or send required dimensions via e-mail to us

Price incudes 50 bungee cords and all box frame fittings

Standard size for 4:3 ratio is W 12ft x H 9ft

Wide screen size for 16:9 ratio is W 16ft x H 9ft

Recommended : use 15'x9' so that you can swap between standard and wide screen depending on your projector

Note! Custom screen sizes can be made to order at no extra cost

Note!

All screens are supplied with the above shown frame fittings

but we don't supply the EMT conduit tubing itself as freight shipping these inexpensive items is too costly

1inch diameter EMT conduit piping is available at all good hardware stores (Lowes or Home Depot etc) for around $16.00 per 10ft length.

You'll need 14 of them for the complete box frame. See further below for the HomeDepot link for these pipes.

Note: The 1inch diameter conduit steel required to build the frame is supplied by Home Depot.

If you do not have a local Home Depot store near you then they will not offer shipping.

In this case you will have to make arrangements to pick up the order yourself.

Note! the EMT conduit piping comes only in 10ft lengths

It will have to be cut down to size to match your screen size by the purchaser.

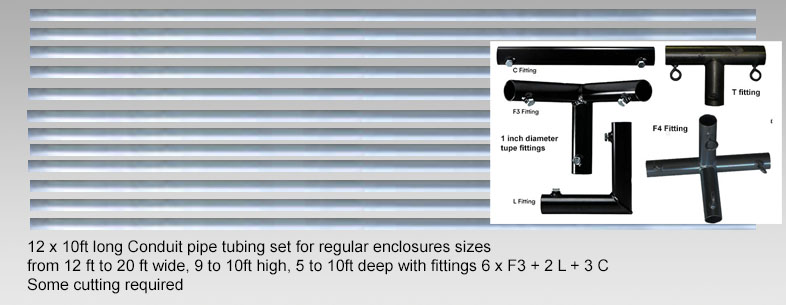

For convenience, we can arrange payment and shipment of all 14 x 10 ft lengths of conduit piping for you

$ 499.00



Frame size to Screen size

The frame should be around 2 inches per side greater than the screen size.

i.e. if the screen size is 12 ft x 9 ft (144" x 108") then the frame should be 12ft 4" x 9ft 4" (148" x 112").

Standard custom size screen

$ 899.00 or $749 w/o frame

Price for 16'x9' (or any custom size) standard screen material impact screen with box frame fittings (8 X F3, 2 FT and 2 F4)

Preferred screen

$ 1,199.00

or $949 w/o frame

Price for 16'x9' (or any custom size) preferred screen material impact screen

with box frame fittings (8 X F3, 2 FT and 2 F4)

Premium custom size screen

Custom size up to 10'x8'

(or any custom size less)

$ 1,199.00

with box frame fittings (8 X F3, 2 FT and 2 F4)



Premium custom size screen

Custom size up to 14'x9'

(or any custom size less)

$ 1,299.00

with box frame fittings (8 X F3, 2 FT and 2 F4)

or w/o frame fittings

$999

Premium custom size screen

Custom size between 14' wide and 16' wide

up to 10ft high

$ 1,399.00

with box frame fittings (8 X F3, 2 FT and 2 F4)

Premium custom size screen

Custom size between 16' wide and 18' wide

up to 10ft high

$ 1,499.00

with box frame fittings (8 X F3, 2 FT and 2 F4)




Custom size screens

Please note that all our screens are custom made to your exact size requirements

Just let us know what size - height and width - you want and we'll make your screen to these dimensions.

Note: Current lead time for custom made screens is around 2 weeks


Warning! International customers!

Please note: The products on this page are only available for this prices listed for US resident customers only.

Contact us if you are outside the US for a shipping quote for this product.

If you're an international customer and ignore this warning and still click the "Buy Now" button to process the transaction

then the product will not be shipped and a 10% refund charge will be applied.

(US sales only - contact us for shipments outside the US)

International customers - Outside the US - Please note!

Please note: GSA Golf products are only available for these prices for US resident customers only.

Contact us if you are outside the US for a shipping quote to your country.

If you're an international customer and ignore this warning and still click the "Buy Now" button to process the transaction

then the product will not be shipped and a 10% refund charge will be applied.

There is an additional standard $200 to $300 shipping charge

(depending on your country and weight of the product)

for any of our VisTrak systems required.

Additional FedEx shipping to Canada

$ 100

Additional International FedEx shipping charge

$ 200

Additional International FedEx shipping charge

$ 300




Standard size screens from $299

Click above image to read more


Home theater quality premium screen image impact screens

Aspect ratios

Most projectors can do at least 16:9 aspect ratios these days

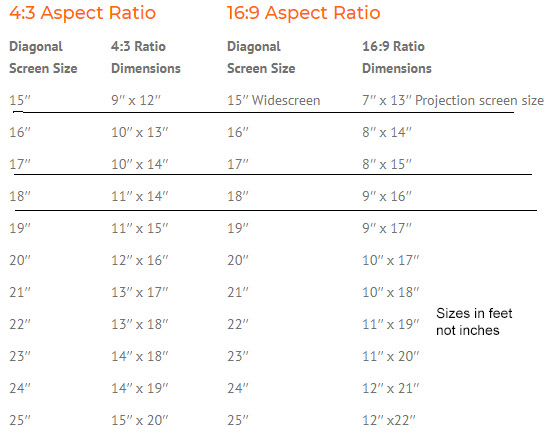

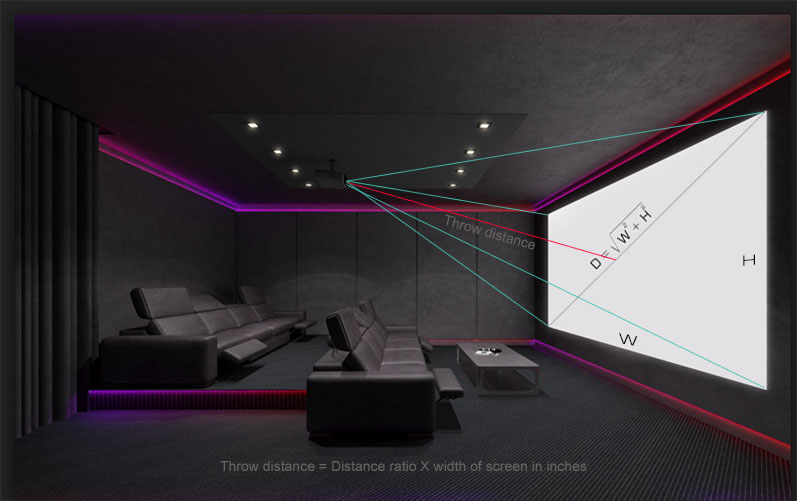

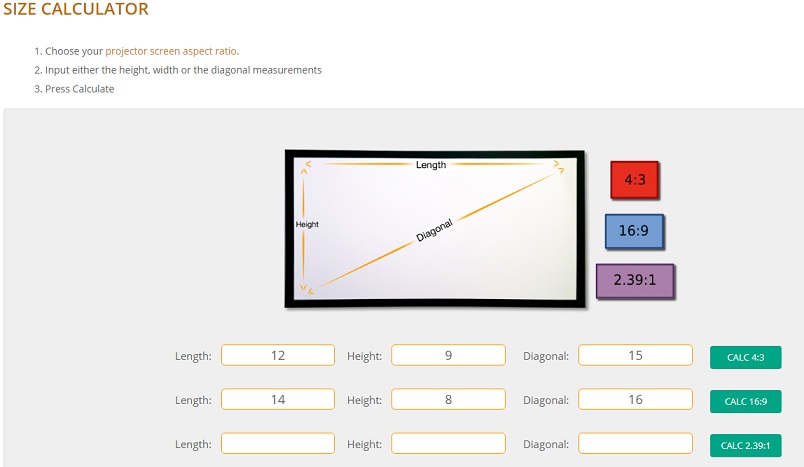

Screen size chart

Use this screen size calculator to calculate your desired screen size

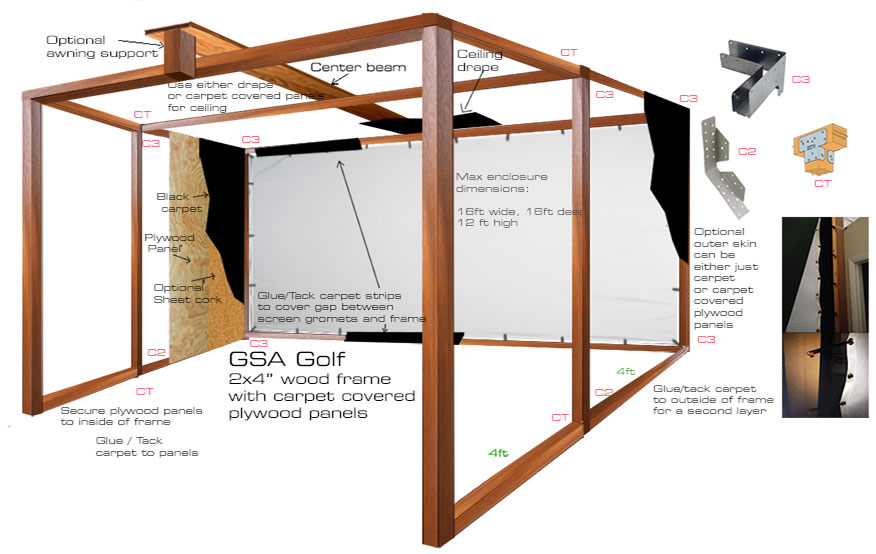

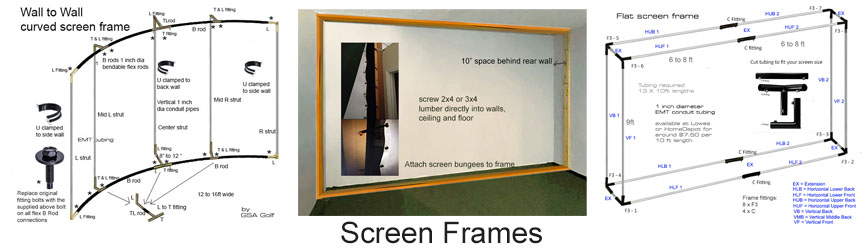

Click on the above images to read more about solid wall and cage frame enclosures

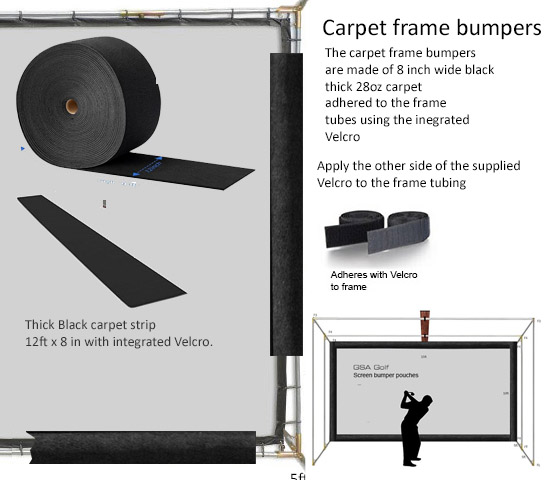

Screen valance

The screen bungeee cords and tubing are covered with a screen valance made of a number of 12ft x 8 inch wide black fultron strips

These thick black lengths are ideally suited for screen valances and give the screen a professional finished look

Set of 4 black rolls (48 ft) for screen sizes up to 15 ft wide and 9ft high

$ 299.00



Set of 5 black rolls (60 ft) for screen sizes up to 20 ft wide and 10ft high

$ 379.00

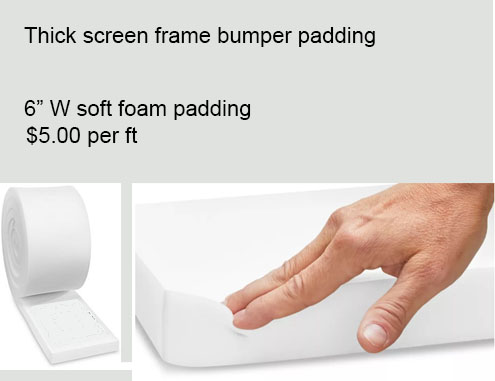

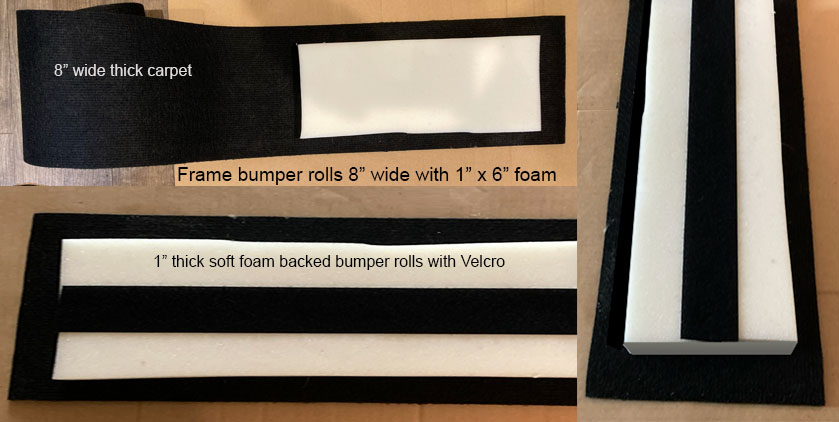

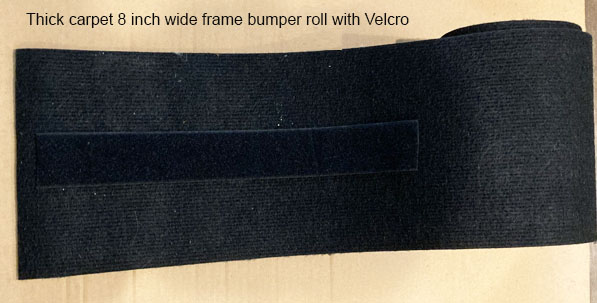

Foam frame bumpers

Use these foam inserts to protect direct ball contact to the screen frame

$ 399.00

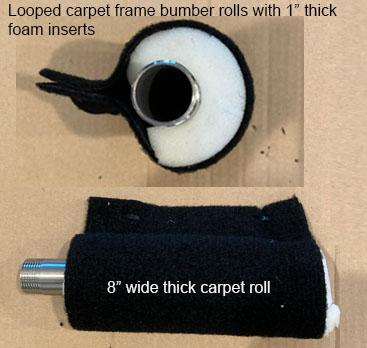

Pipe padding

Alternatively, use foam pipe insulation or swim noodles


Warning! International customers!

Please note: The products on this page are only available for this prices listed for US resident customers only.

Contact us if you are outside the US for a shipping quote for this product.

If you're an international customer and ignore this warning and still click the "Buy Now" button to process the transaction

then the product will not be shipped and a 10% refund charge will be applied.

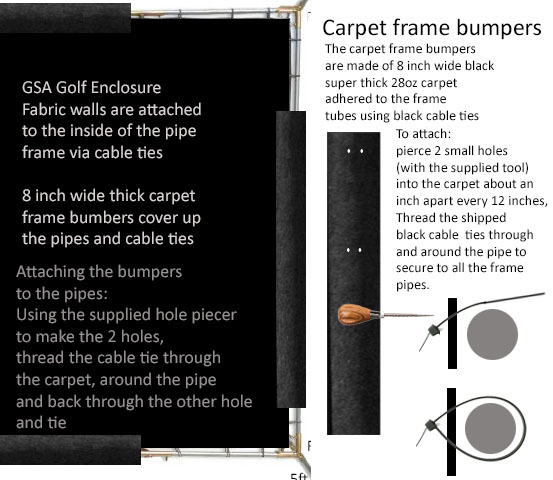

How to mount the screen Valance rolls

Method 1

Pierce 2 holes close to each other in the center of the material.

For the screen sides left and right, pierce the holes vertically. i.e. one lower and one higher in line with each other

For the screen bottom and top, pierce the holes horizontally. i.e. one next to the other in line with each other

Thread a black cable tie through the hole and tie to the screen bungee cords from behind.

Repeat the procedure every foot or so for each side of the screen

Method 2

An alternative is to wrap the valance roll carpet around the frame piping and secure it in place with the screen bungees as shown above

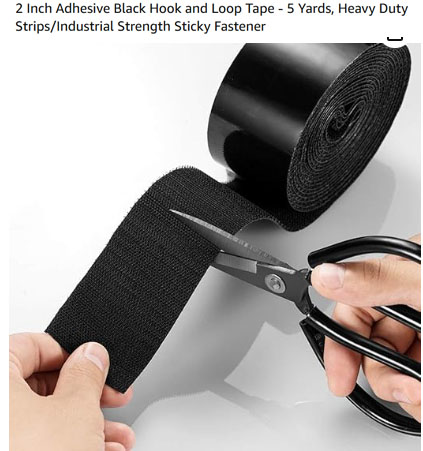

Method 3

Velcro strips may also work.

The hook side of Velcro attaches well to the fluffy side of the rolls but not the smoother side.

The strips would have to be sewn into the rolls if the fluffy side is to be outside.

These screen valances can also be used to cover any exposed tubing if using a tube frame enclosure


Screen frame assembly instructions

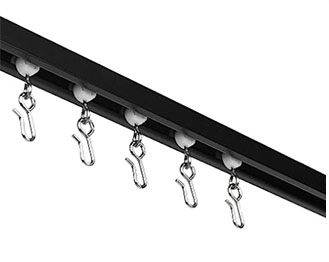

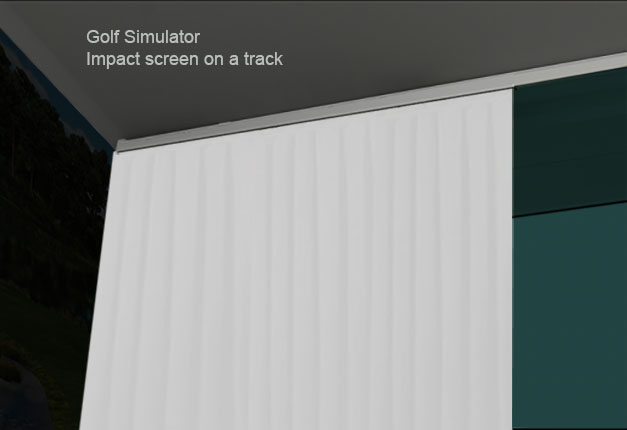

Track drape enclosure screen mounting on the box frame

All screens are supplied with tube box frame fittings

The box frame is self standing but can be fixed to the floor and/or rear wall using 1 inch diameter tube clamps

Note! All screens are supplied with the above shown frame fittings but we don't supply the EMT conduit tubing as freight shipping these inexpensive items is too costly

1inch diameter EMT conduit piping is available at all good hardware stores (Lowes or Home Depot etc) for around $8.00 per 10ft length.

You'll need 14 of them for the complete box frame.

Frame size to Screen size

The frame should be around 2 inches per side greater than the screen size.

i.e. if the screen size is 12 ft x 9 ft (144" x 108") then the frame should be 12ft 4" x 9ft 4" (148" x 112").

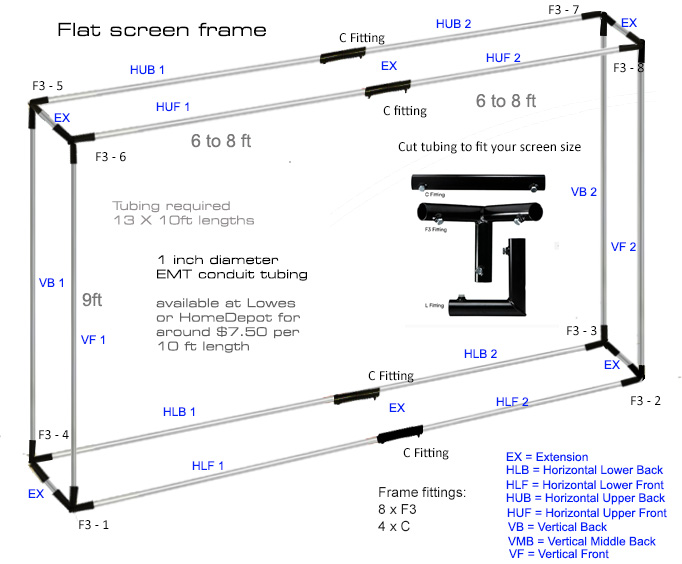

The screen box frame assembly is quite straight forward but does require a little bit of effort and measuring

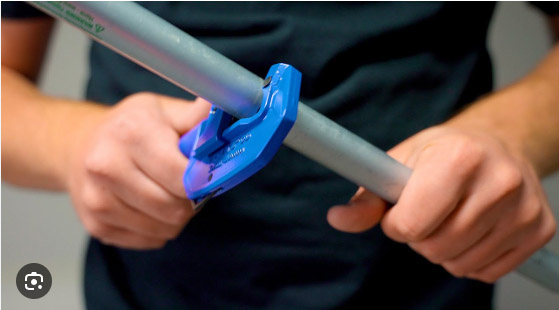

Start by cutting the conduit EMT piping to suit your screen size width and height and the EX pipes to suit your box depth requirements (usually from 1ft to 4ft).

The conduit pipes come in 10ft lengths so for a 12ft wide screen, the horizontal pipes

(HLB 1, HLB 2, HLF 1,HLF 2 and HUB 1, HUB 2, HUF 1 and HUF 2)

will be cut to 6ft each and for a 15ft wide screen they will be cut to 7.5 ft lengths each.

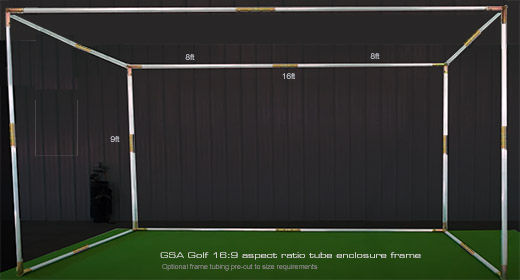

Build up the box frame as shown in the above image. Start with the floor level horizontal pipes and fittings,

then attach the vertical (VB 1, VB 2 and VMB ) pipes

and finally the upper level pipes and fittings HUB 1, HUB 2, HUF 1 and HUB 2.

Once the box frame is made up, you can start attaching the screen using the supplied bungee cords.

(see below on how to mount the screen with the bungee cords)

If you find that the box frame is slightly too small then you can extend the tubes an inch or two out of the fittings to suit.

If the box frame is too large then the pipes will have to be cut down in length to suit.

For added stability you can secure the frame to the floor and/or back wall with 1 inch diameter pipe clamps.

Buy 1 inch diameter conduit pipe directly from Home Depot with delivery by clicking on the above image

You'll require 14 lengths for the box frame screen frame

For convenience, we can arrange payment and shipment of all 14 x 10 ft lengths of conduit piping for you

$ 399.00

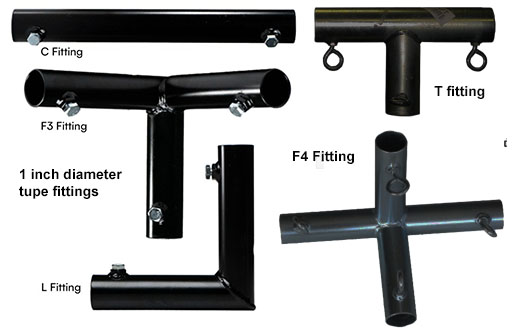

Set of 12 impact screen box frame tube fittings

8 F3 + 2 FT + 2 F4

$ 299.00

Note: this is just the frame fittings. You'll still require the 14 x 1 inch diameter conduit tubing from your local hardware store.

Set of 6 impact screen single frame tube fittings

(i.e. 4 L corners and 2 FC joins)

4FL + 2 FC

$ 149.00

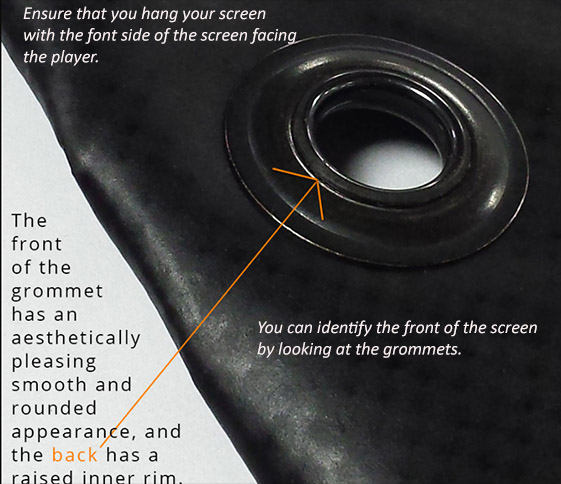

Which side of the screen is the front side ?


Warning! International customers!

Please note: The products on this page are only available for this prices listed for US resident customers only.

Contact us if you are outside the US for a shipping quote for this product.

If you're an international customer and ignore this warning and still click the "Buy Now" button to process the transaction

then the product will not be shipped and a 10% refund charge will be applied.

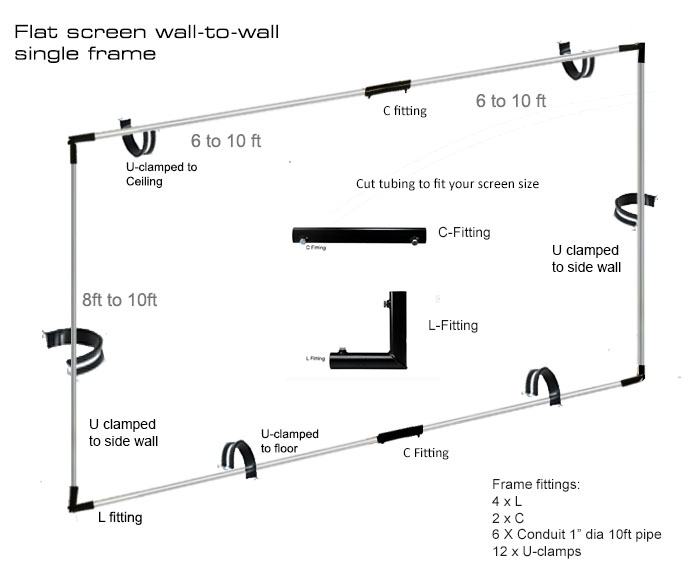

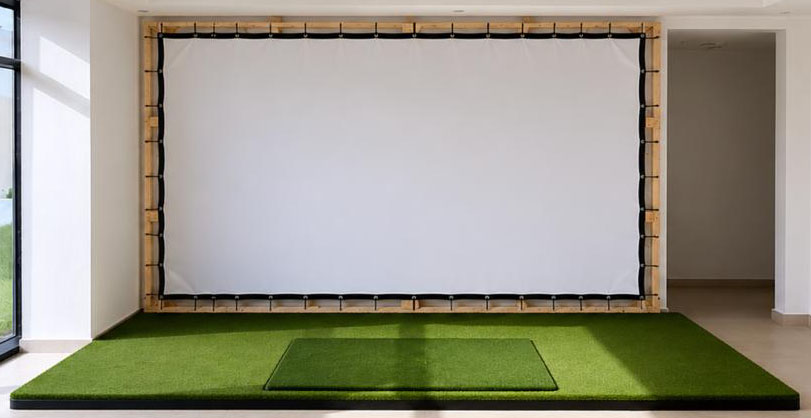

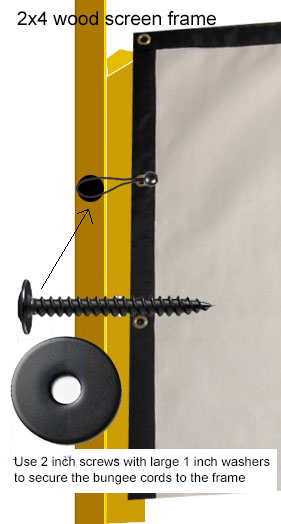

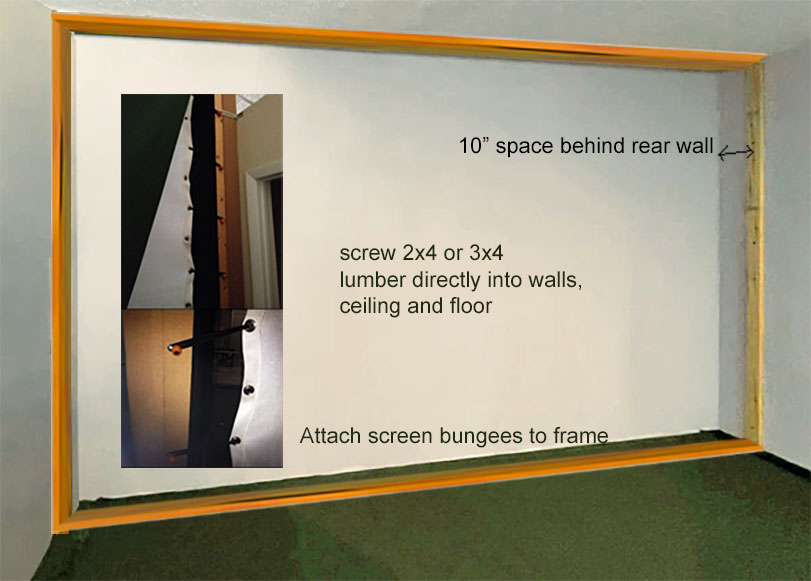

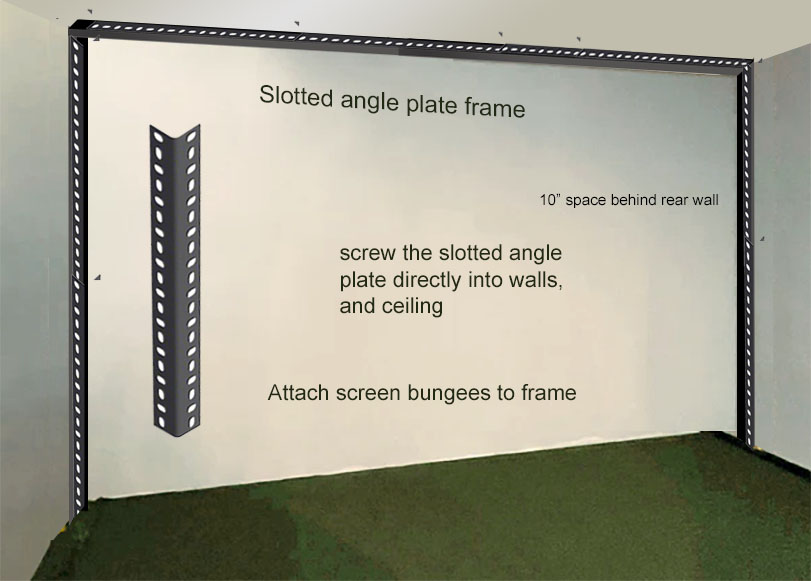

Alternatively the screens can be mounted without a box frame directly to the floor and ceiling using clamps, hooks and bungee cords

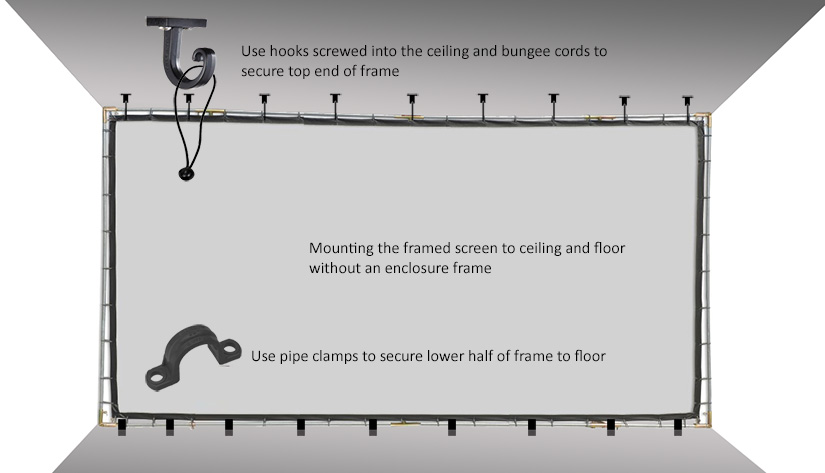

You can also mount the screens like this without a screen frame but note then that there will be no side tension on the screen so some waving might appear in the screen

Mounting screen using rear extension frame only


How to mount the screen to the frame with the bungess

Insert the bungee cord through the grommet hole from behind the screen.

The ball now touches the backside of the black vinyl border.

Pull the cord over and around the frame/or 1" EMT pipe.

Lastly, loop the cord over the ball behind the screen.


Curved screens

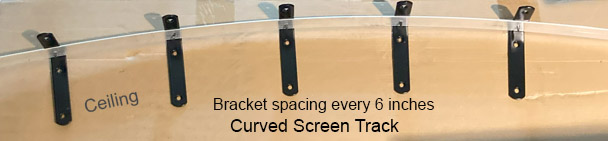

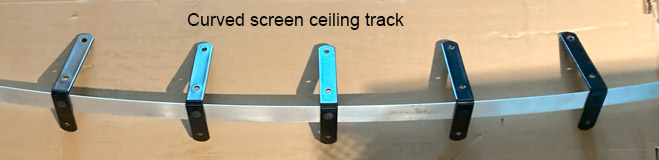

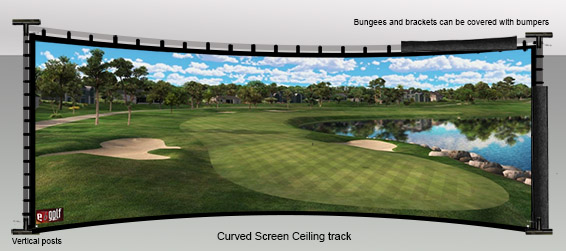

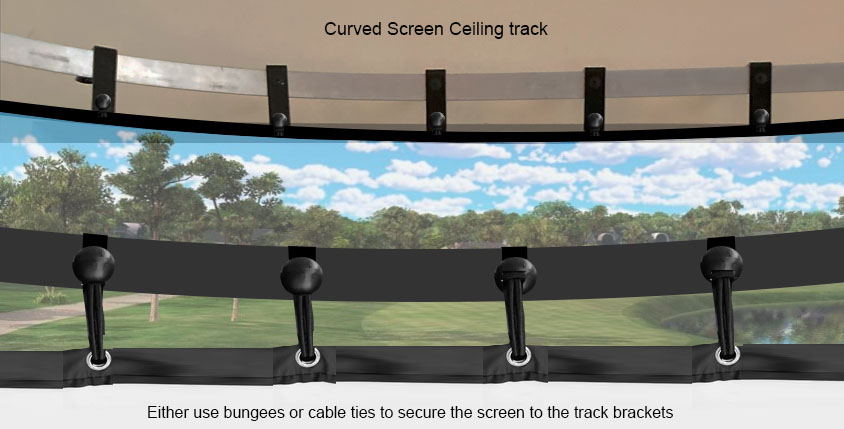

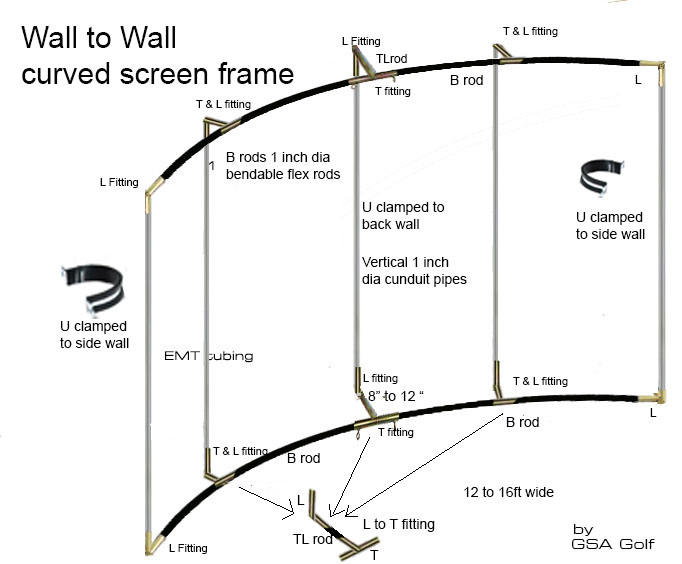

If you'd like a curved screen then you can use the standard frame pipe fittings with bendable ABS A and B rods

Quote from "www.draperinc.com"

Curved projection screens offer several key advantages over flat projection screens.

A curved screen helps offset pincushion distortion from a horizontal expansion lens, and also wraps the image around your periphery more than a flat screen for greater engagement with your projected image.

In addition, the curved image is subject to less ambient reflected light from your room, while your projector’s light is more accurately reflected by the perfectly smooth viewing surface for an ideal picture.

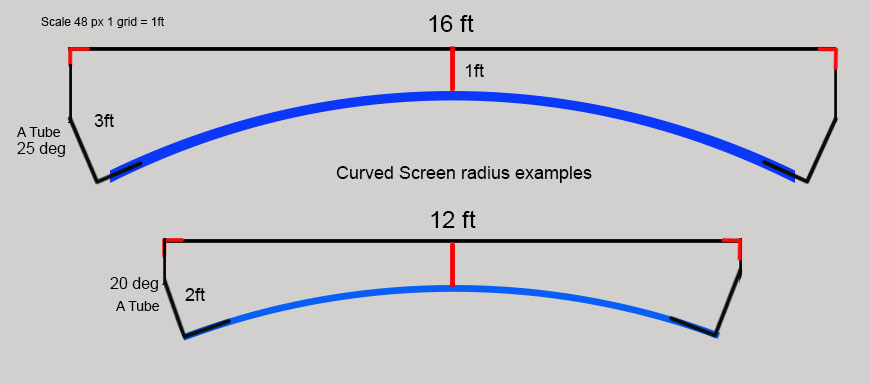

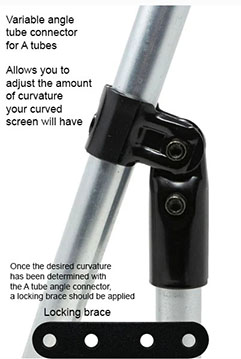

The amount of curvature is determined by the length of the "A rods" whereas the arc length of the screen is determined by the two "B rods"

"A rods" would normally be in the 3 ft range and "B rods" in the 7.5 ft range for a total width of 15 ft

Note that other golf simulator manufacturers would charge you an arm and leg for curved screens (upwards of $10,000 !)

Our price for a 15 ft wide, 9 or 10 ft high curved screen with double grommets, bungees and fixtures (excluding EMT tubing but including the A and B rods)

Premium (home theater quality) custom size (up to 16ft wide) 3 layer curved screen

Contact us with your screen size requirements

Premium curved screen price including the A and B rods

(without the EMT pipes)

$ 1,899.00

Note : EMT pipes are not included - screen size up to 16ft wide and 10ft high

Important!

We only make the curved screen itself

not the curved image.

see more info below



How to calculate the actual screen width

for a particular screen curvature depth or angle

Using the above online calculator you can determine the actual screen width for a particular screen curvature.

If you know the width of the available space for the screen

"Width of Arc"

and you know how far out the two far sides will extrude compared to the center of the screen

"Height of Arc"

then the actual screen width will be

"Length of Arc"

Purchase just the A and B rods for curved screens

$ 379.00

plus $120 shipping (US only)

Total $ 499.00

Set consists of 6 x 8ft A and B rod lengths

for a max screen arc width of 16ft

Purchase just the EMT pipe fittings for curved screens

Set of 12 impact screen box frame tube fittings

8 F3 + 2 FT + 2 F4

$ 299.00

Note: this is just the frame fittings. You'll still require the 14 x 1 inch diameter conduit tubing from your local hardware store.

Note that the upper A and B rods for curved screens will probably require extra lift support to prevent sagging.

The above ultra strong cable ties with ceiling hooks (supplied) will provide sufficient support to prevent any sagging

Important!

We only make the curved screen itself

not the curved image.

Please note that a curved screen will require special additional software and equipment

for the image coming out of the projector(s) to also curve and match the curvature of the screen.

This software and equipment is not cheap and may cost as much as $1,000 extra and more

The company "PixelWix" may offer some solutions

as does "GeoBox" and "Optoma"

Note that GSA Golf do not offer or endorse any of these image warping solutions.

i.e. We just make the curved screen itself.


Net extensions

-

6ft

$220

8ft

$250

10ft

$280




Golf Simulator Impact screens on a track

If you need to use your golf simulator room for other uses and don't want a fixed impact screen

then try our impact screens on tracks.

Just slide away to the side when not in use.

To purchase, just click on any of the screen option Buy Now buttons above and let us know that it is for a track

and we'll send you the tracks, rollers and hooks instead of the frame fittings.

Also let us know what size screen you want.

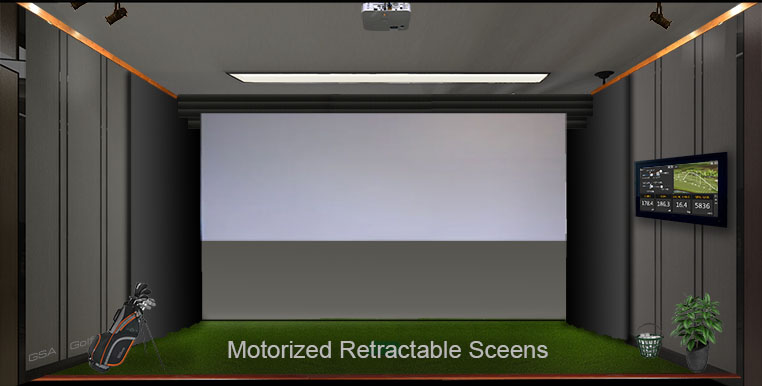

Motorized Screen Tracks

Using our motoriized tracks, you can remotely click the screen to fold back to one side

10ft long

$ 449.00 each

15ft long

$ 549.00 each





-- -


Standard size screens from $185

Click above image to read more



New!

Golf Bays Simulator enclosures from with impact screens $ 1,999.00

(click above to read more...)






Click above to read more about Projectors

Click above to read more about PC's and Projectors

VISTRAK

--

VisTrak hi-speed camera Launch Monitors from $ 1,699.00

Click above images to read more...

PROTEE VX

This ceiling mounted, camera based system accurately measures club and ball data

without the need for specialty balls or marked clubs !

Click above images to read more...

$ 1,999

Click above image to read more with videos...

Contact us





Return Policy & Refunds

All GSA Advanced Golf Simulators LLC products and golf simulators are custom made and/or purchased to order and thus a no return policy applies.

Sale is considered to be done and final and no refunds are granted under any circumstances.

All purchases are non-returnable and non-refundable!

International customers - Outside the US - Please note!

Please note: GSA Golf is not responsible for any import customs duties or brokerage fees that may be due for your order when arriving at the border.

All such customs duties and brokerage fees must be paid by the recipient.

There is also an additional $100 to $300 shipping charge

(depending on your country and weight of the product) for any product exported outside the US.





All camera products Club Tracking Camera Ball spin camera Line Scan camera DIY Kits - Components Enclosures All products PX Systems Software Business Installation and setup
