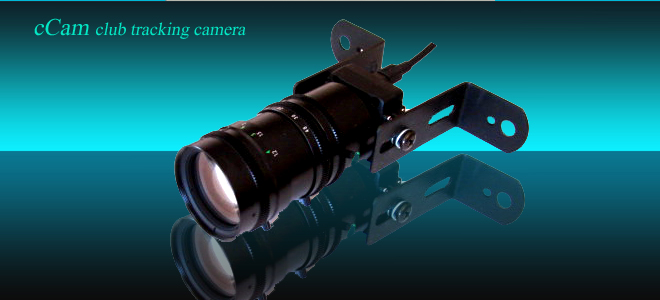

Club Data Detection

Note that all below instructions assume that you are using CP version 10.0.3.3 or higher

The below images are all from shot video frames sent in by customers.

Thus they may appear a tad out of focus and blurry.

i.e. they have not been doctored or enhanced

Method of club detection

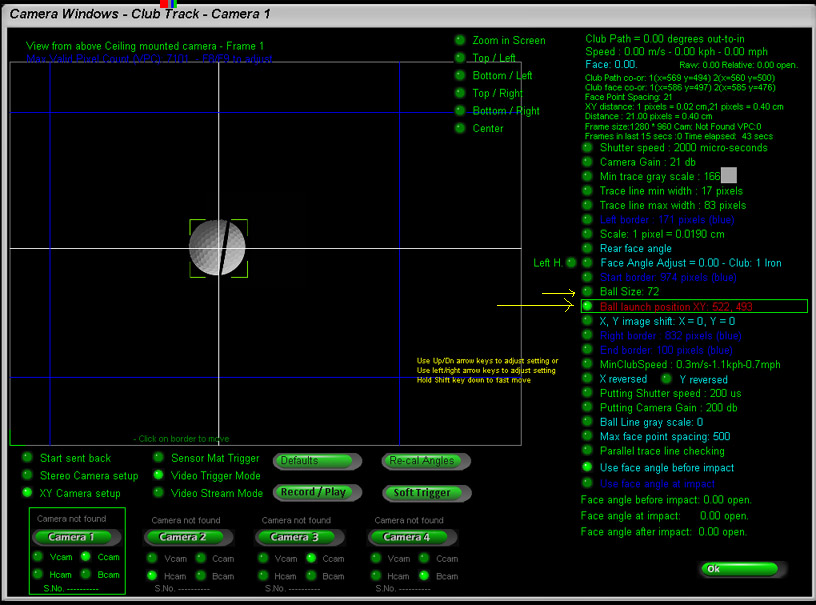

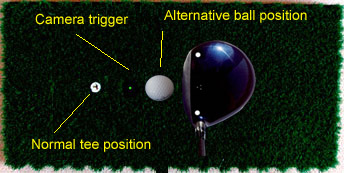

The basic method is to scan back from the stationary ball on the mat (i.e. before ball strike)

looking for pixels that are above the set floor gray scale level (GS).

So we're looking for a transition from the floor GS to a GS that is higher

i.e. a positive edge transition

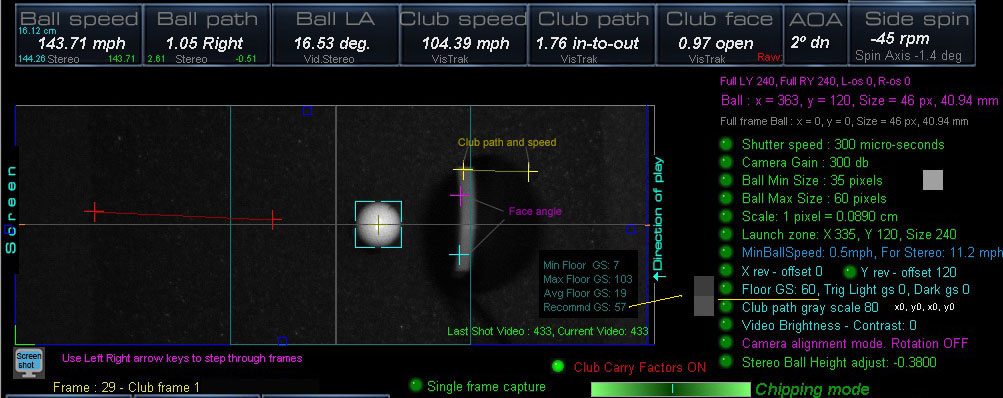

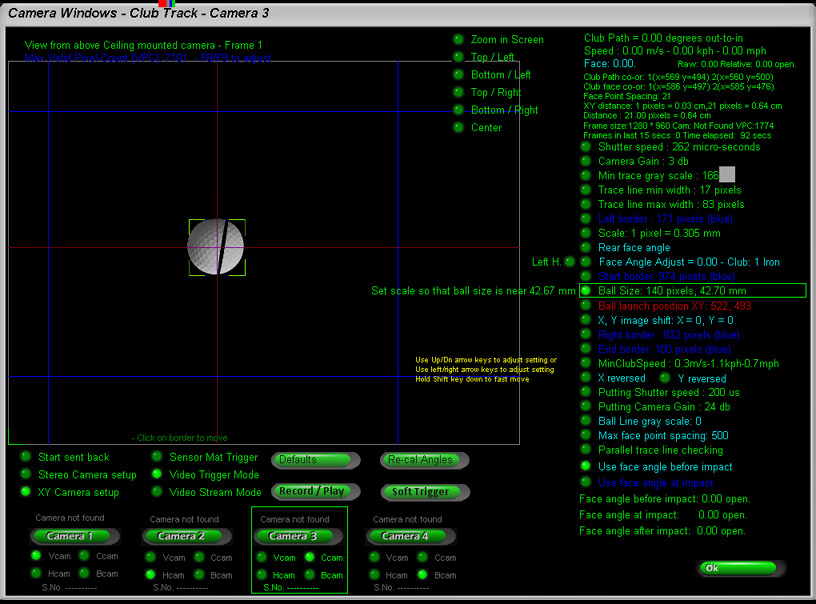

Two main scans are made from the first frame behind the ball.

1 above the ball to the center of the ball

Shown in Pink/Red

and 1 below the ball to the center of the ball.

Shown in Aqua

Once found, this will give us the club face angle of the ball 1 frame behind the ball strike frame

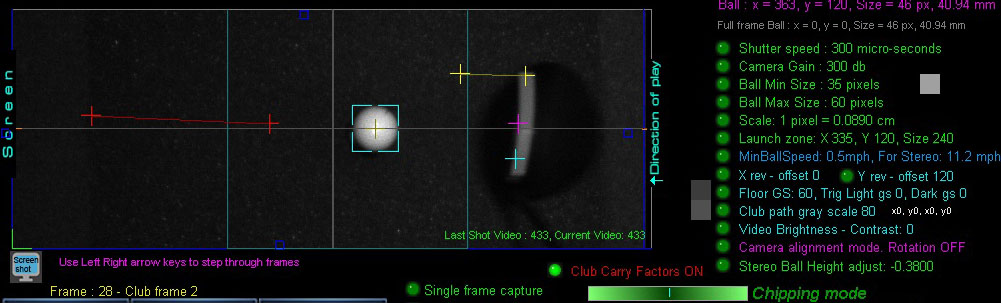

A second set of two scans are then made from 2 frames behind the ball

Again, two main scans are made from the first frame behind the ball.

1 above the ball to the center of the ball

and 1 below the ball to the center of the ball.

Once found, this will give us the club face angle of the ball 2 frames behind the ball strike frame

In addition, the top most transition edge is noted in order to measure ball path and speed

Shown in Yellow

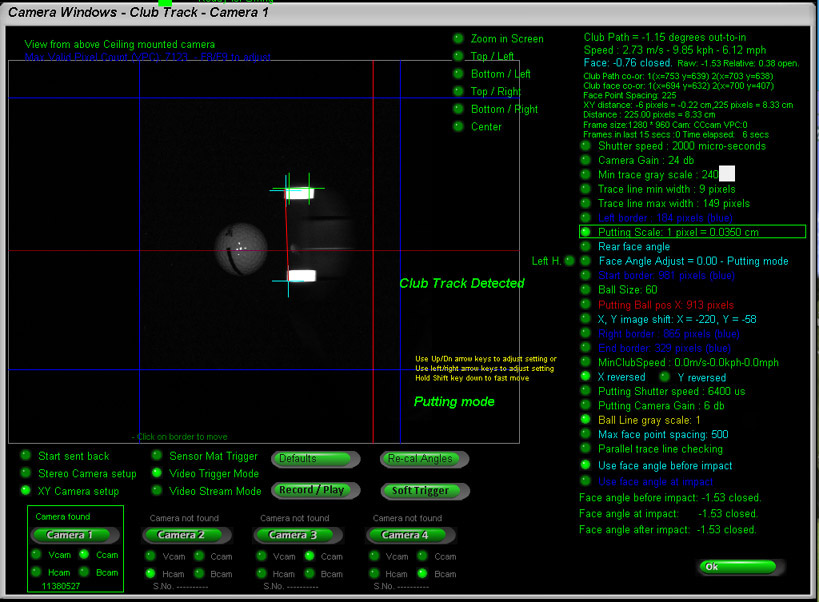

Club Sped detection

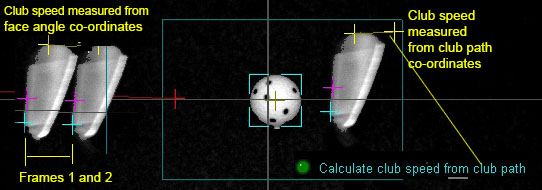

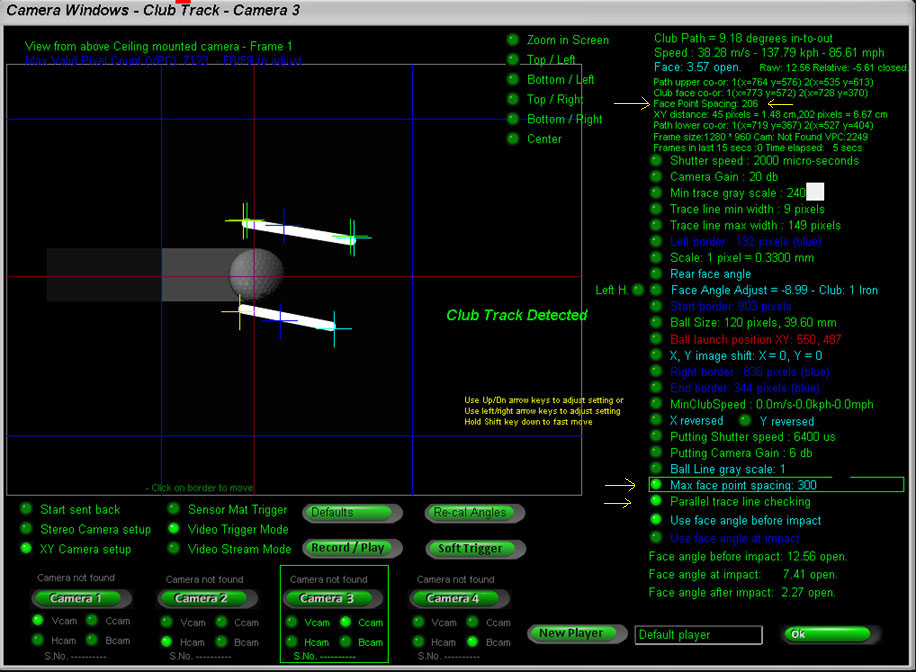

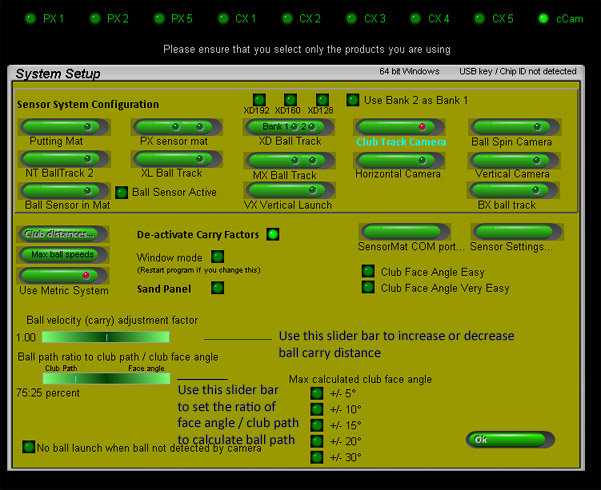

You can opt to select either club path or club face co-ordinates to measure club speed

Detecting club data with or without reflective stickers

In either case, the method is exactly the same as described above.

i.e. we are looking for edge transitions from the floor GS to above floor GS.

As such, it's just a matter of fine tuning the floor GS to match the transition edge

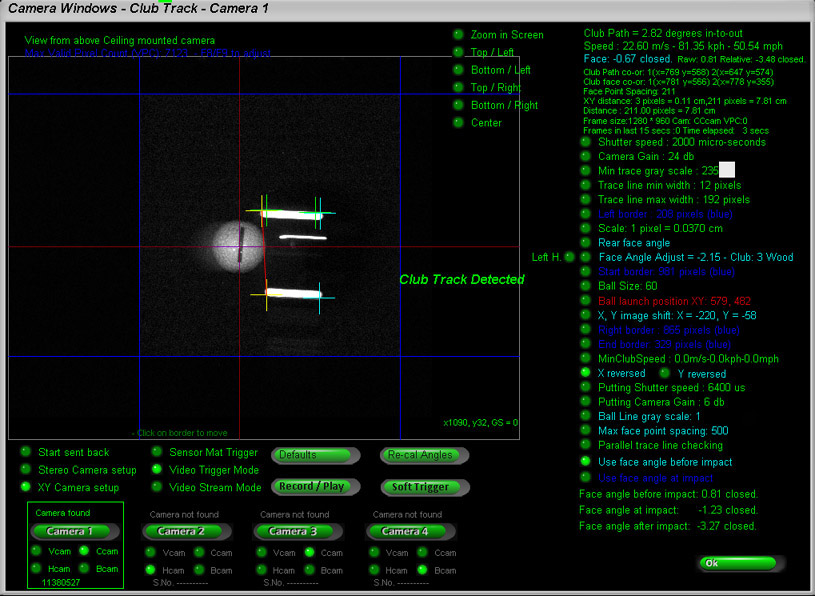

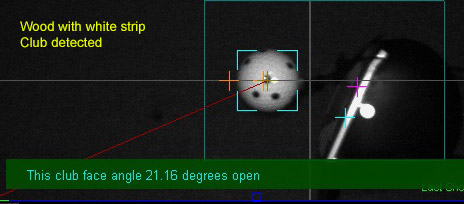

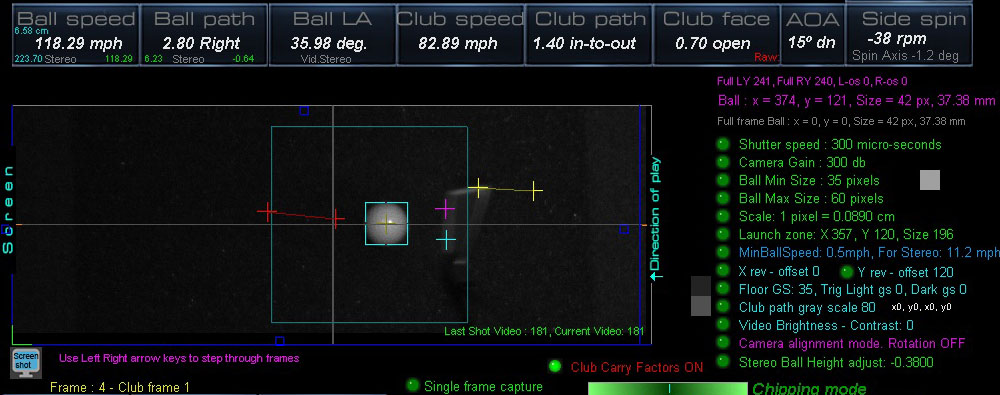

In the above example, a white sticker was applied to the leading edge of the driver.

This vastly increases the transition threshold level from the floor GS of 60 to the sticker GS of 150.

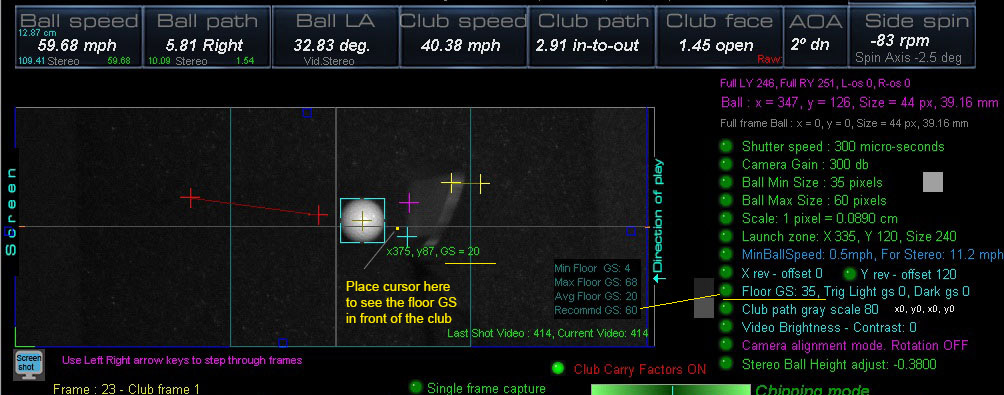

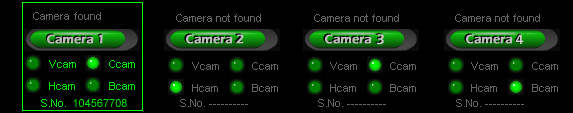

Note that the recommended Floor GS setting is now shown in the camera panel

To initialize this setting, click the soft trigger button without a ball on the mat.

The system will then measure the average Floor GS of all the pixels within the Launch Zone area

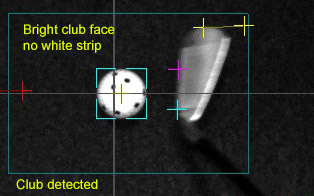

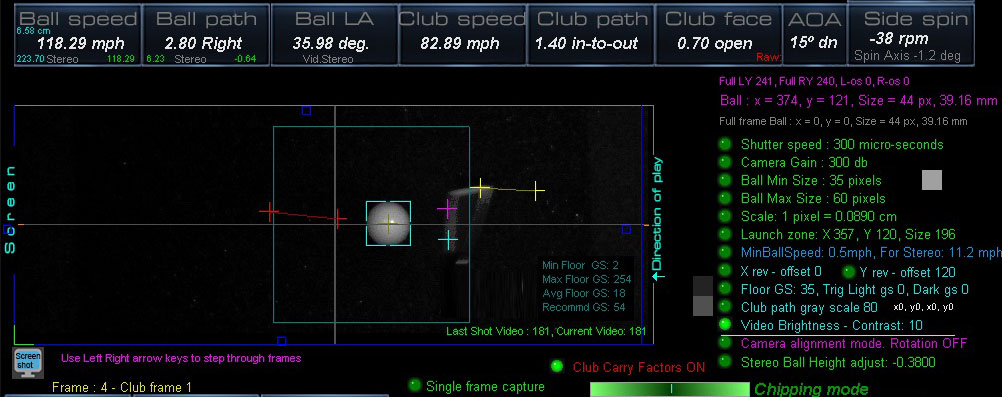

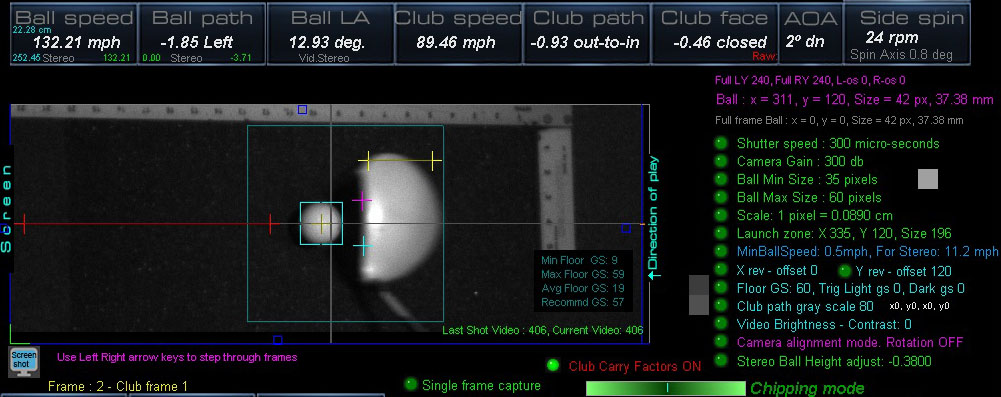

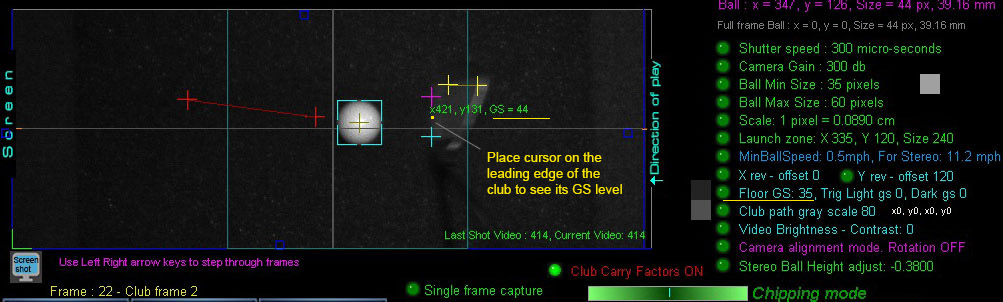

This is club frame 2 from the previous shot

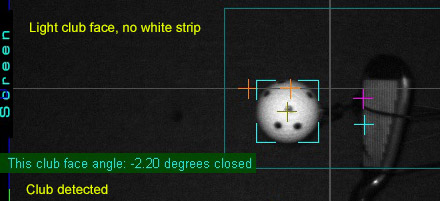

In the above example, a white sticker was not applied to the leading edge of the club.

Thus the transition threshold level from the floor GS to the leading edge of the club is significantly lower

than it would be if the club featured a white sticker.

In order to detect the leading edge of the club without a white sticker,

we need to find out what the GS level of the club leading edge is.

In this case it is 44.

(using the shot video in the camera panel)

And what the Floor GS level is (see previous image)

In this case it is 20.

We then just need to set the Floor GS to a level in between these 2 levels

In this case level 35 works well.

Click the "Re-calculate" button to see the results of the club detection.

Thereafter, all club data should be accurately detected for all other shots no matter how bright the club is.

Of course, there is a limit to this.

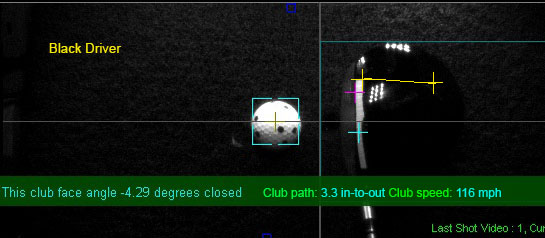

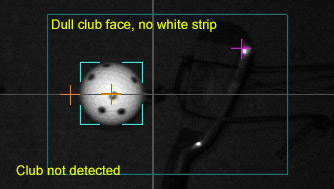

If you are using a dark or black club or your lighting is such that there's essentially no Floor GS to Club edge GS level transition or deviation,

then there's no way to detect the club.

i.e. if you can't see the club at all because it blends into - or is darker than - the underlying surface,

then the cameras won't see it either.

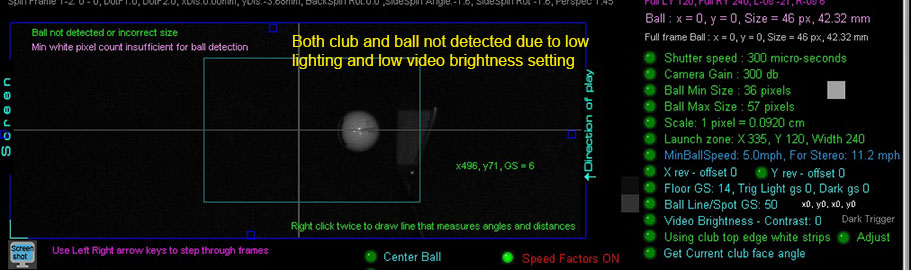

Sometimes the leading edge can appear faint

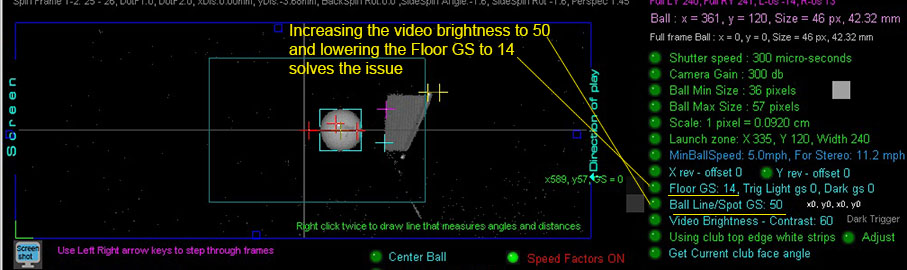

Increasing the Video Contrast helps

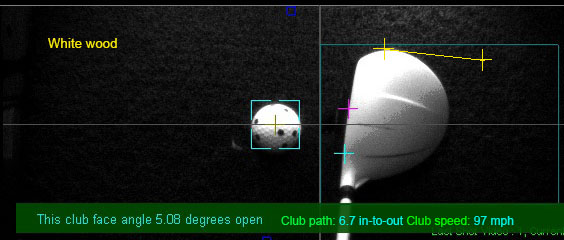

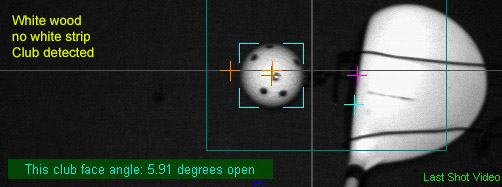

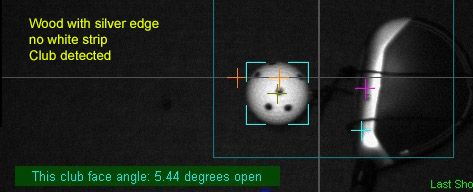

Of course, if you using white clubs or clubs with a white strip already on them, then there shouldn't be any problem in detecting the club.

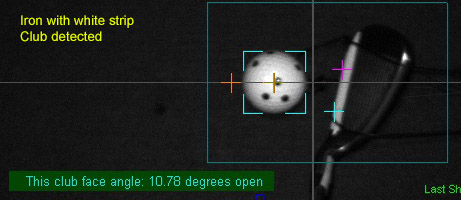

Optional Club markings

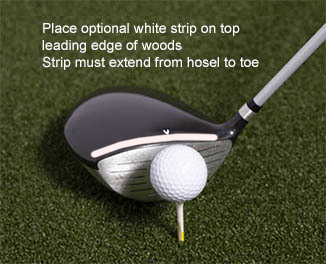

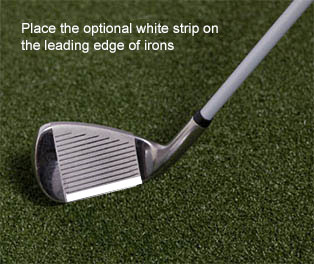

One or two white strips can be applied to the leading edge or top edge of irons and the top edge of woods

in order for the system to detect more precise club face angle, speed and path.

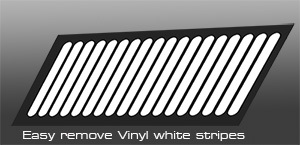

You can use supplied sticky-back white glossy photo paper as club strips

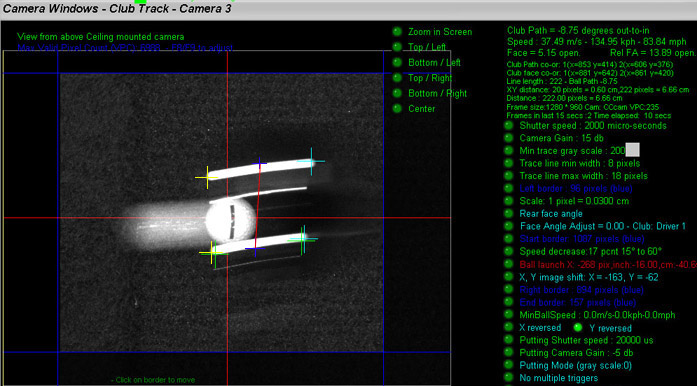

The below examples are from the VisTrak LX2 using the new top view IR LED lighting

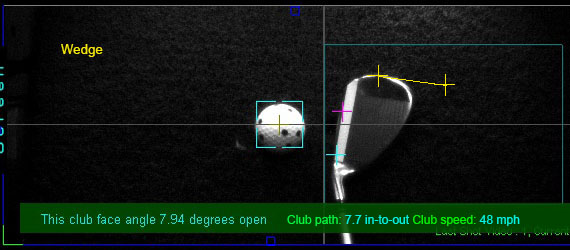

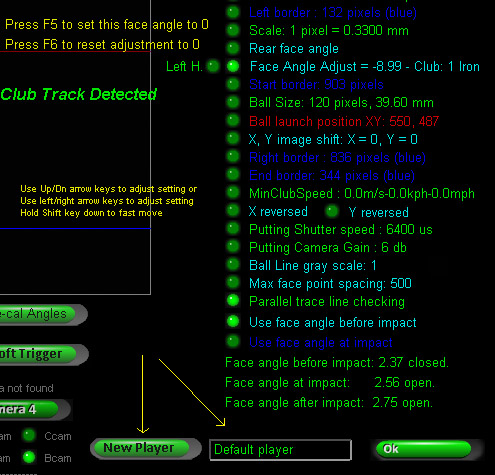

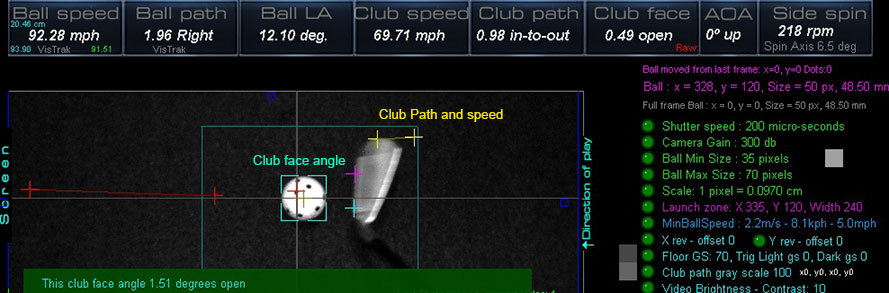

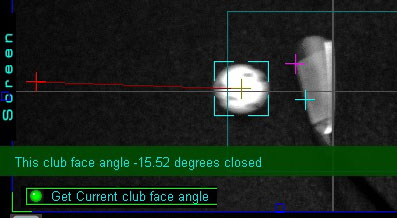

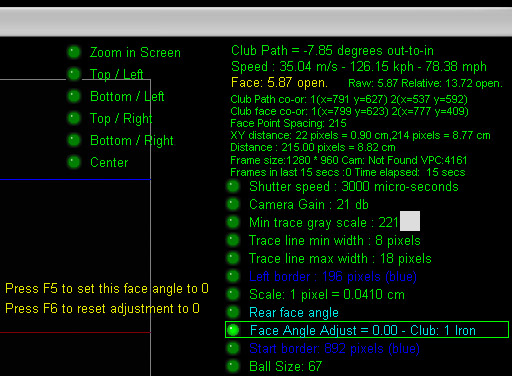

Note: You can now click a button to get the current club face angle in the current frame.

LX2 examples

SCX, Eagle, EVi examples

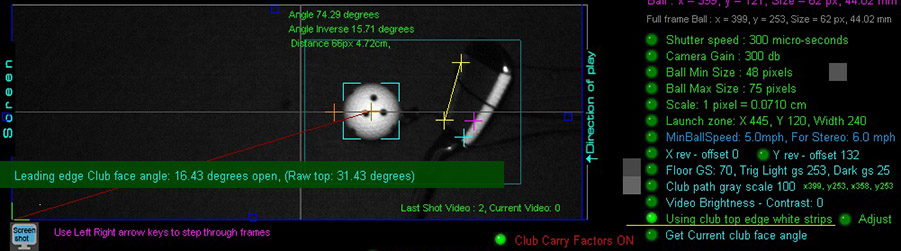

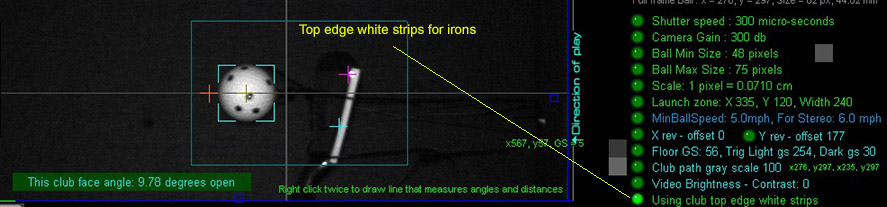

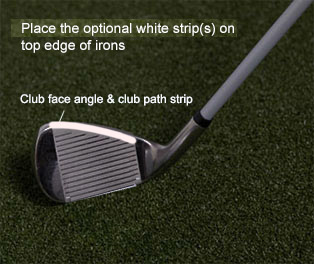

Top Edge white strip mounting for irons

If hitting irons on the down swing or you have mounted the cameras behind the player, the club face will be out of view.

This problem is solved by placing the club marking on the top edge of the club (like the Uneekor systems do).

However, the measured face angle from the top strip has to be adjusted to get back to the leading club face angle.

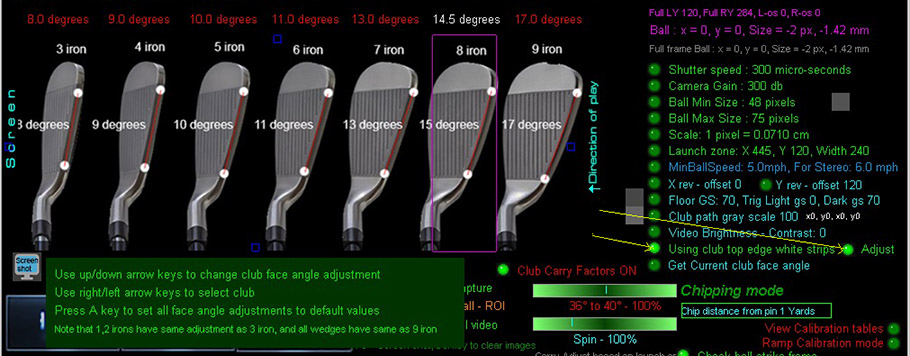

The above image shows the default adjustments required for each iron club.

You can change the amount of top face edge angle to leading edge angle adjustment for each club.

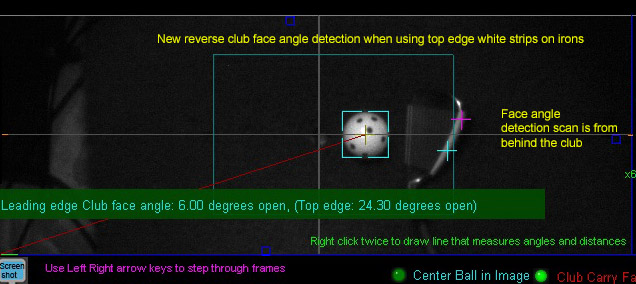

New : Club face issue when using top edge strips with irons now resolved

Club face angle detection scan is now done from behind the ball with irons when using top edge white strips

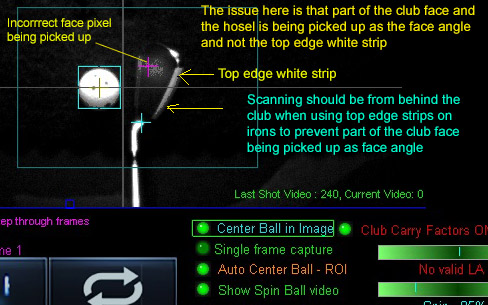

to prevent the issue shown in the below image from occurring

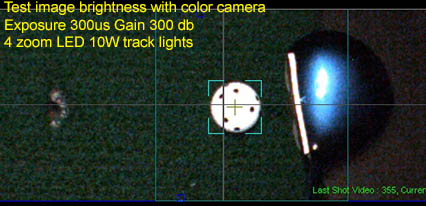

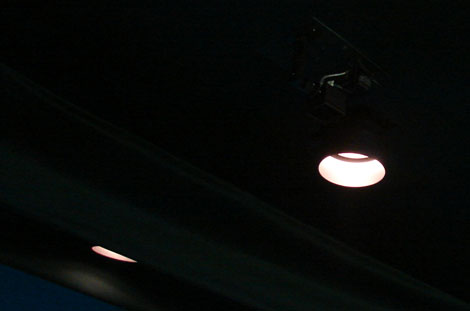

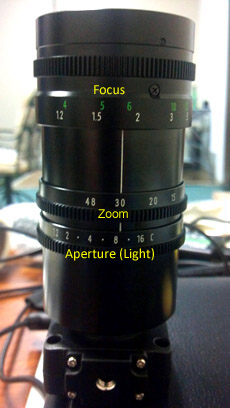

Lighting

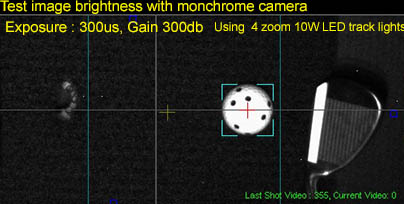

These images were taken here at GSA Golf using optimal lighting.

Adjusting the lighting can make a significant difference and vastly improve the club detection

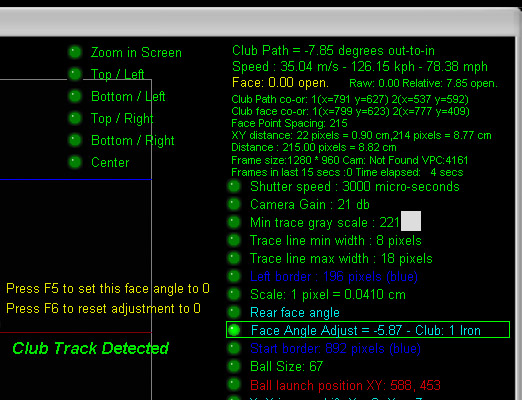

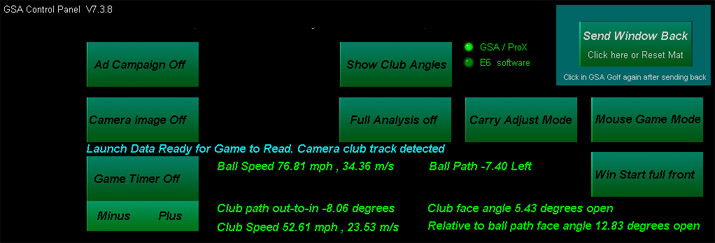

New: You can now click a button to get the current club face angle in the current frame.

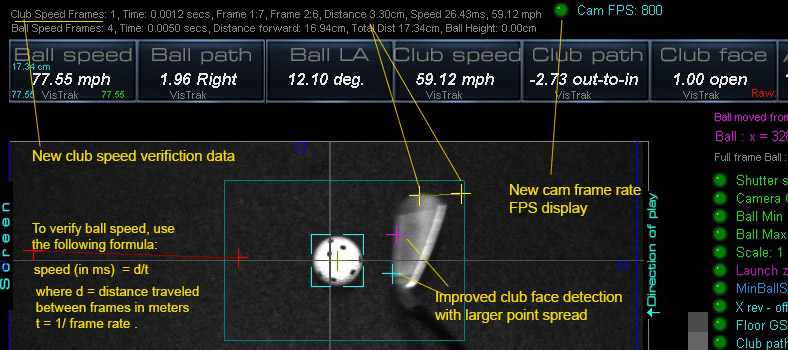

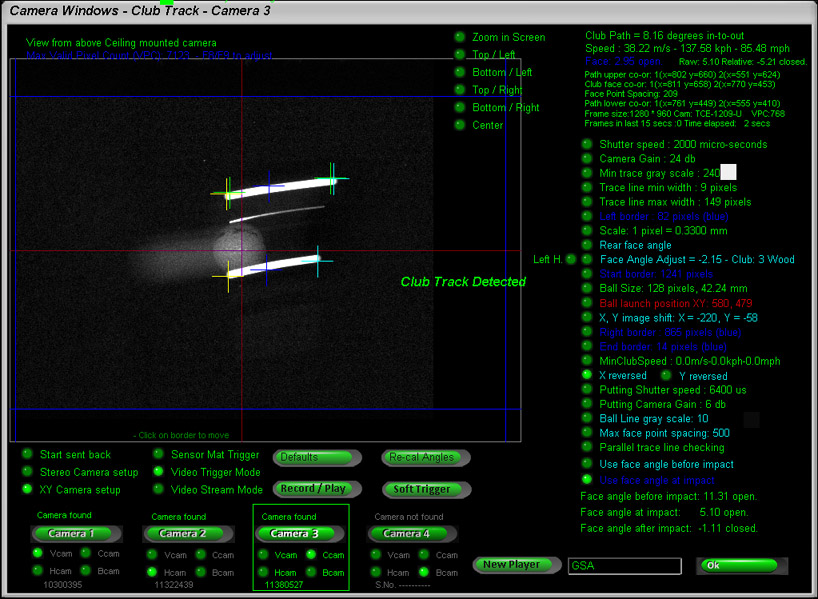

New: Club speed varification

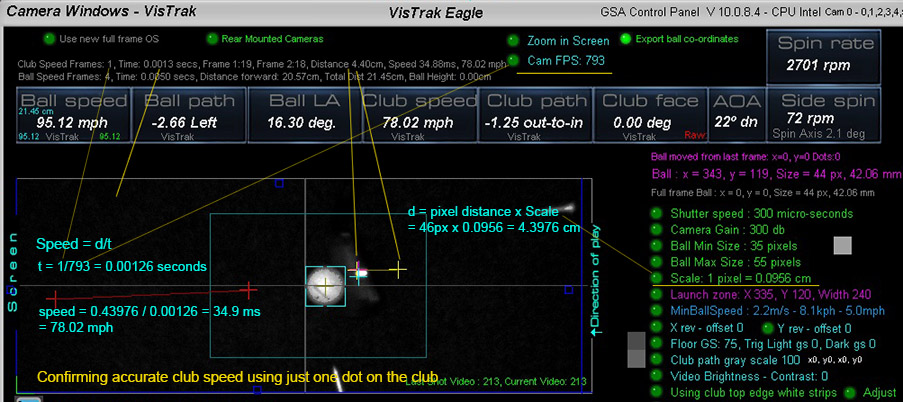

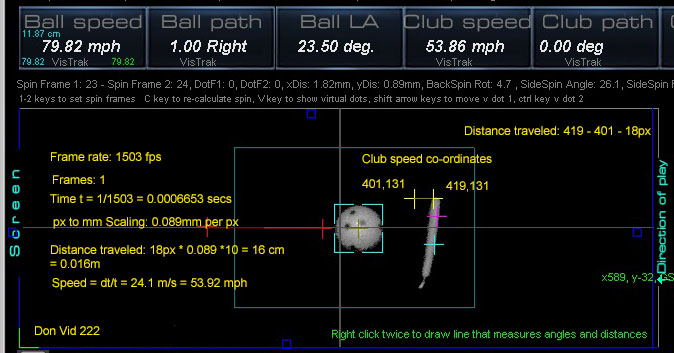

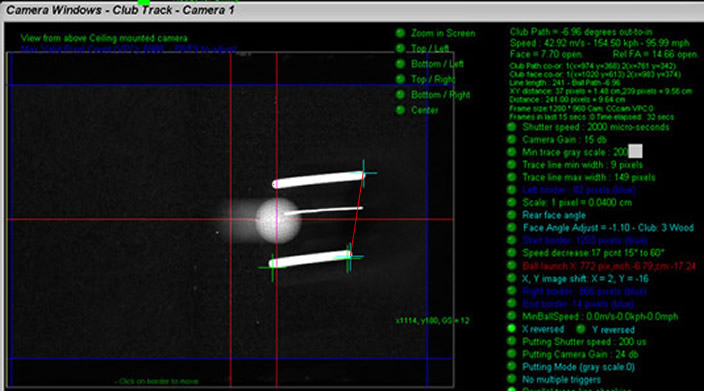

Verifying accurate club speed example

Verifying accurate club speed example 2




The importance of Club Face angle and Path Cross Hairs

In contrast to other camera club tracking systems,

GSA Golf's VisTrak systems show the cross hairs of the detected club face angle and path.

Without these cross hairs, there's no way a user can verify that the systems are actually detecting the club data.

i.e. they are just showing a shot playback video of the club

and that is no indication that the club data is actually being detected and reported by the system.

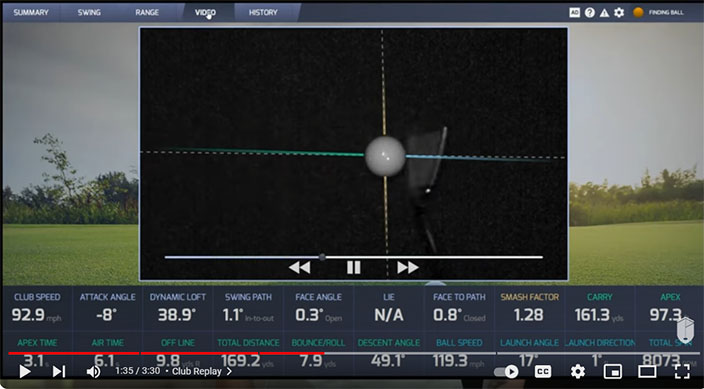

ProTee VX

$6,499

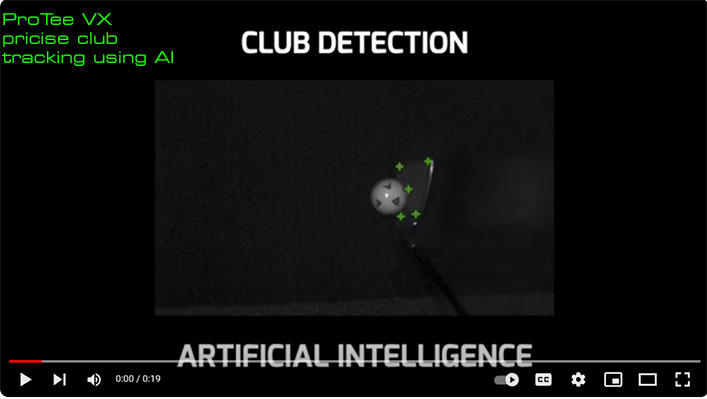

ProTee did have a YouTube club tracking video showing club detection cross hairs

but I haven't seen these in any of the real playback videos

Currently, I have no idea how ProTee's VX system is using AI to capture club data but apparently they do.

I haven't recently looked to see if the above green club cross hairs are actually shown on all the post shot video feed playbacks

but if they are, then that's amazing!

Currently I'm only seeing ProTee VX club playback videos like the above without cross hairs

BTW I'm not saying that the club detection accuracy without cross hairs is incorrect,

just that the user cannot see and verify that the systems did actually detect the club data correctly.

Uneekor

$7,000

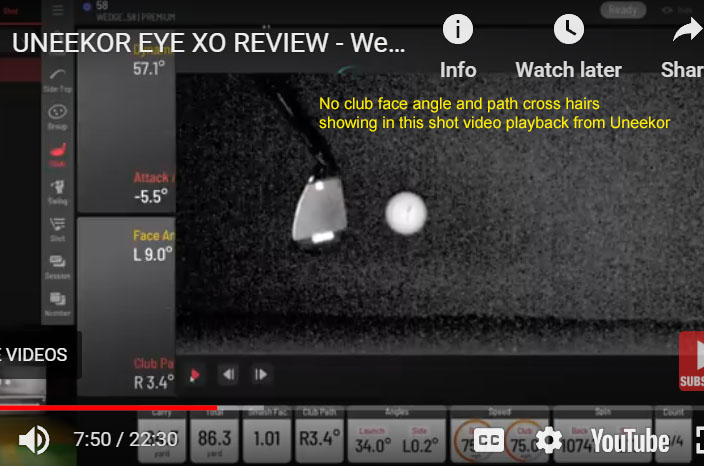

Likewise, Uneekor - at least in all the post shot playback videos I've seen -

don't appear to be showing any club detection cross hairs either.

TruGolf Apogee

$ 9,000

Based on the above Apogee low resolution post shot video playback image,

I have no idea how the Apogee captures all the club data (face angle, path and speed) using just one dot

plus all ball spin parameters (i.e. back and side spin)

GSA Golf VisTrak SCX

$1,699

In contrast, the VisTrak systems always show these cross hairs

so the user can see we have detected the correct club face angle and path
