Golf Simulator Software
Try it before you buy it
New 64 bit full Version GSA Golf Control Panel
V 10.2.3.7
The new 64 bit version of the GSA Golf CP supersedes the older 32 bit version now
In addition to all the new up and coming features, there is a major increase in performance as well.
CP64 4 times faster than CP32
A quick speed comparison check recently revealed that CP 64 is over 4 times faster than CP 32
While CP 32 required 5 seconds to calculate ball and club data for a particular shot, CP64 only required 1 second for the exact same shot
Thus, ball-strike-to-ball-launch lag time has been dramatically reduced with CP 64.
You may have to run the above MS redistributables app to run CP 64 first
Once installed, a PC restart may be required
Download and install the latest CP 64 bit update after installing the full version
if the full version has a lower version number than the update
V 10.2.4.2
Download includes sample shot videos
Plus free Swing Capture software
Plus free 18 hole golf course game software
Great for evaluation with the GSA Golf Control Panel - playable with the mouse.

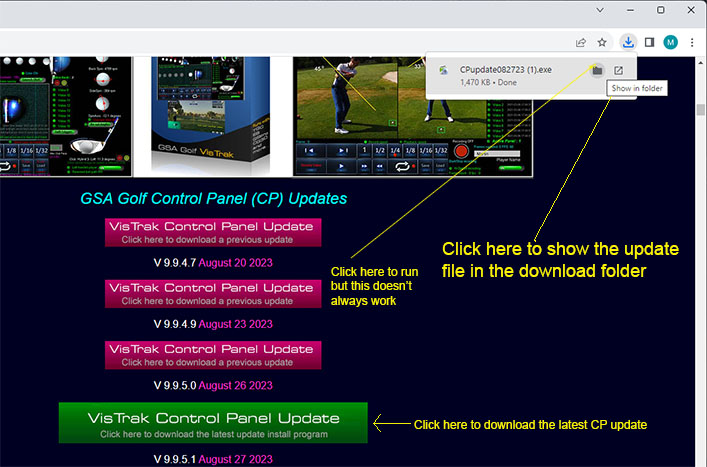

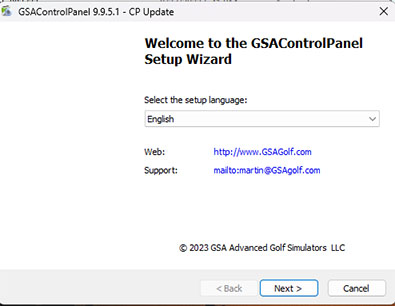

How to install the CP (Control Panel) full version and update

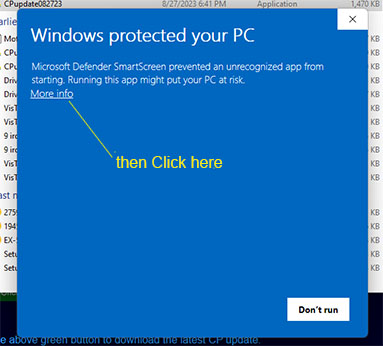

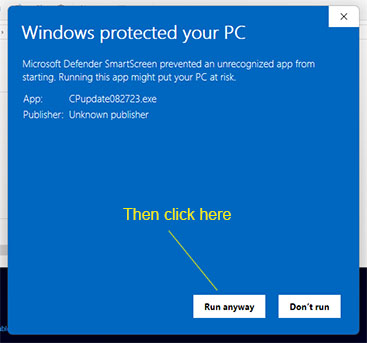

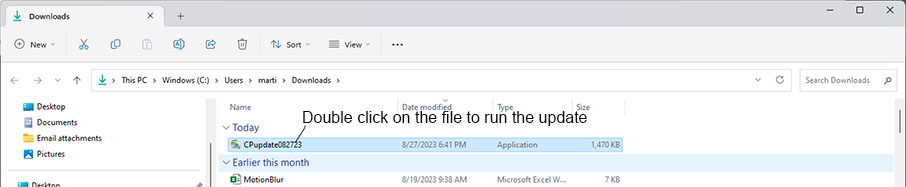

Double click on the downloaded CPupdate file in the Downloads folder on your PC
Even though Windows will complain about it, rest assured that the download presents no threat
And off you go

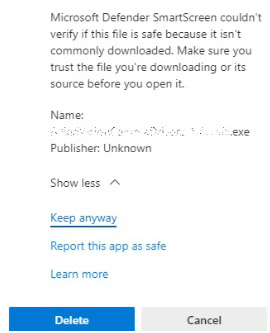

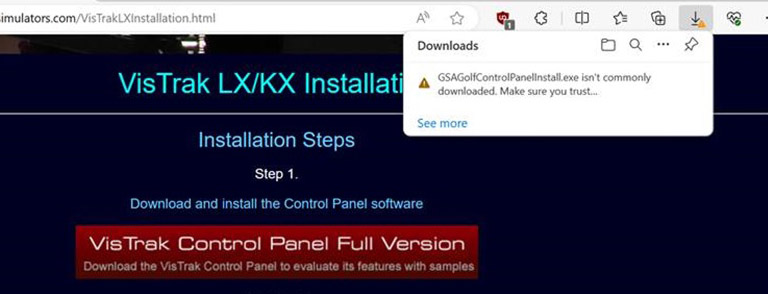

Browser or Anti Virus blocking the download?
If you see the above message when clicking on the Download link,
click on the "See more" button
and then click the option "Keep anyway"

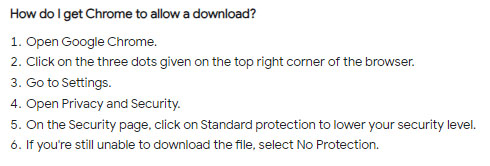

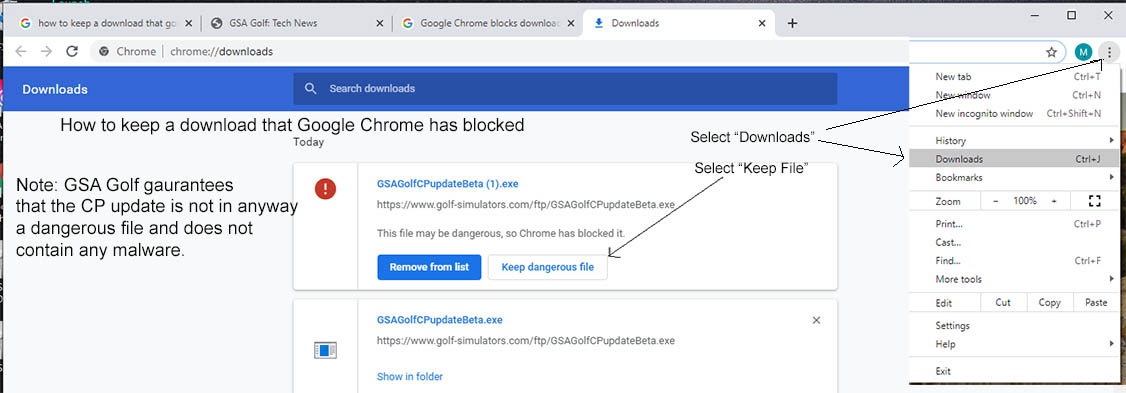

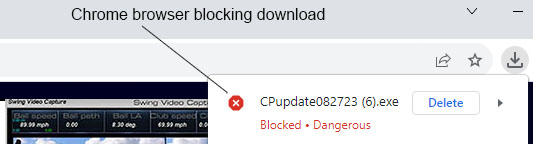

Chrome blocking the download?
After the download, best to switch back to at least Standard Protection
From what we gather, Google's new policy is to block all exe file downloads from websites that are not on their trusted "White List".
So until then, all users wishing to download the latest CP updates may have to go through the above shown process.
Note: do the above procedure after the download has completed and you get the "blocked" message from Google Chrome

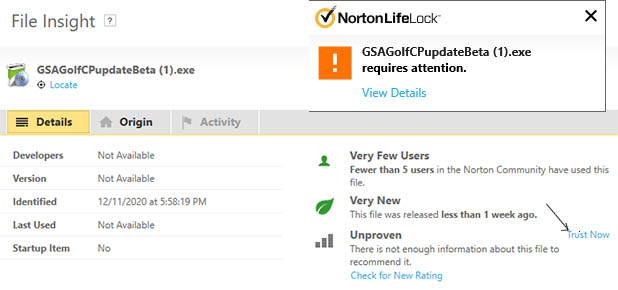

Even then, your Virus Protection software will probably be complaining about it too.
Click the "Trust Now" in this case.
You may also have to temporarily switch off Windows Defender
Sometimes Windows Defender is controlled by your anti-virus software.
In this case you'll have to temporarily disable your ani-virus too.
Note that you can also try the zipped download links as zipped files should be able to avoid any virus protection blocks
Please note: We guarantee there is no Virus in our software downloads what-so-ever.
We are an honest and trustworthy company and our only aim is to provide great software for use in your golf simulator.
VC redistributables
If not already installed on your PC, you may require these VC (Visual C) files
Download VC redistributables hereHere
and run the installation
Don't forget to run the download after it's downloaded!
A number of customers don't realize that a CP update is a dual process
i.e first download and then run the download
Note that anti-virus programs will probably try to block the GSA Golf CP update download but - be assured - there's no malicious software in the download update
so just ignore any warnings from your anti-virus programs and choose the "More options" and "Run anyway" option.
GSA Golf Control Panel Full version download
Use the above download to install the full version Control Panel with sample shot videos
for first time installations on new PCs.
VC redistributables
If not already installed on your PC, you may require these VC (Visual C) files
Download VC redistributables hereHere
and run the installation

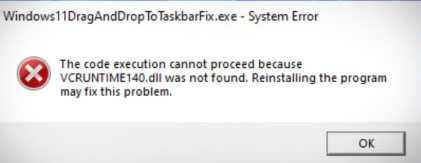

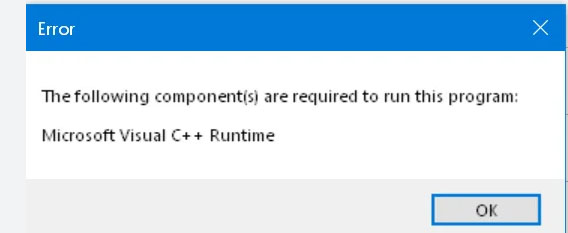

Error message missing dll error messages
for "MSVCP140.dll" and "VCRUNTIME140.dll"
If you see this error message when running the CP,
Click the above link
and download and install the two below files
x86: vc_redist.x86.exe
x64: vc_redist.x64.exe

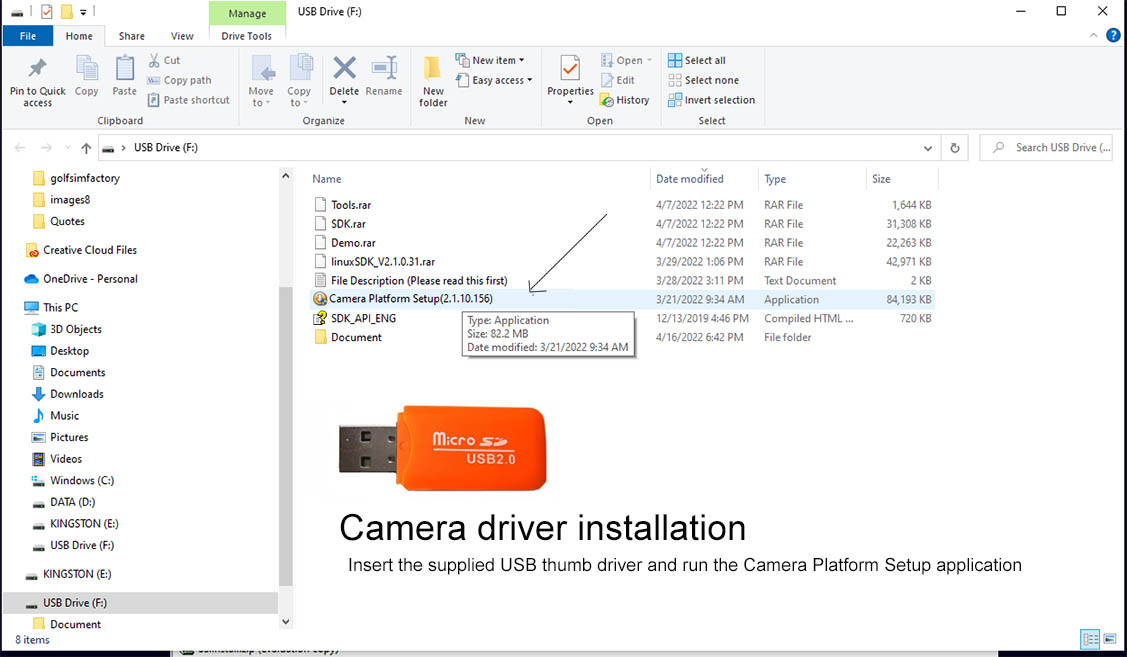

Click the above image to download the camera driver setup if you don't have the thumb drive
Game software

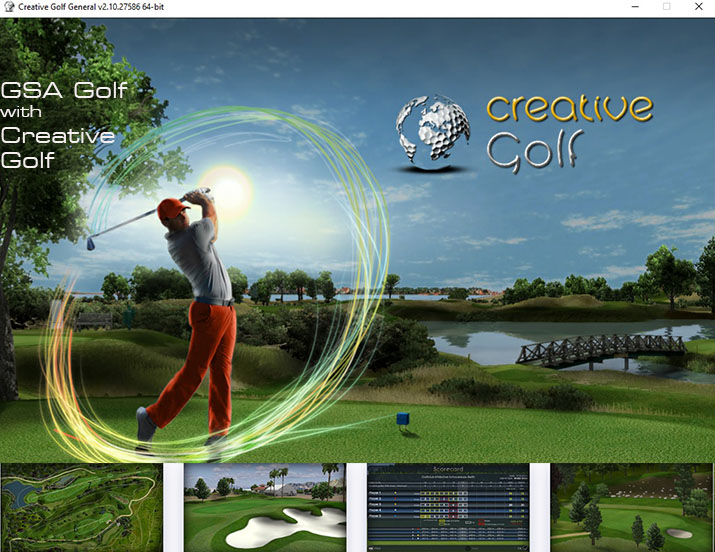

GSA Golf 18 hole course game software included free of charge with every GSA Golf tracking system
Click above image to download the 18 hole GSA Golf game software
d3dx9_30.dll
You will require the above additional file to use the GSA Golf game software
Click the above image to download the d3dx9_30.dll file

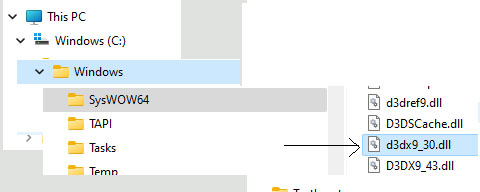

copy the d3dx9_30.dll file to your C:\Windows\SysWOW64 folder.
creativeGolfInterface.dll
The Creative Golf Interface DLL is included in the latest updates.
Click the above image to download and copy it to the C:\Program Files (x86)\GSAControlPanel if not

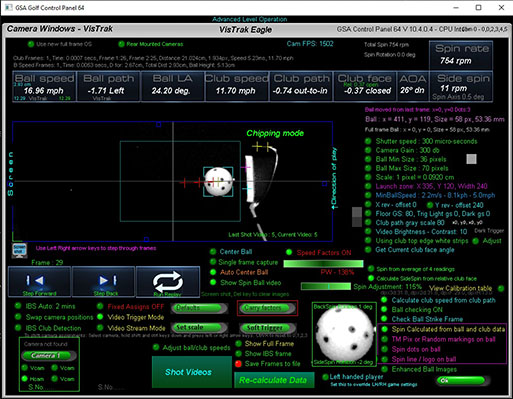

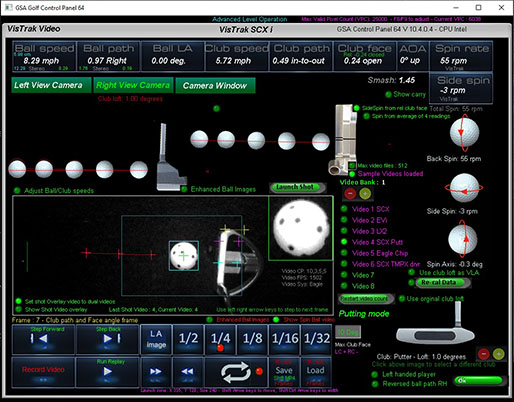

Sample shot videos
For those that are installing the software for the first time or experimenting with the setup,
you may be interested in viewing the sample shot videos.
To view and run the sample videos. go to the VisTrak Videos panel in the Control Panel
and click the "Load Sample Videos".
Select video 1, 2 or 3.
Note that when loading the sample videos, the system type will change to match the shot video.
Video 1 was generated from an SCX system and Video 2 from an EVi/LX2 system

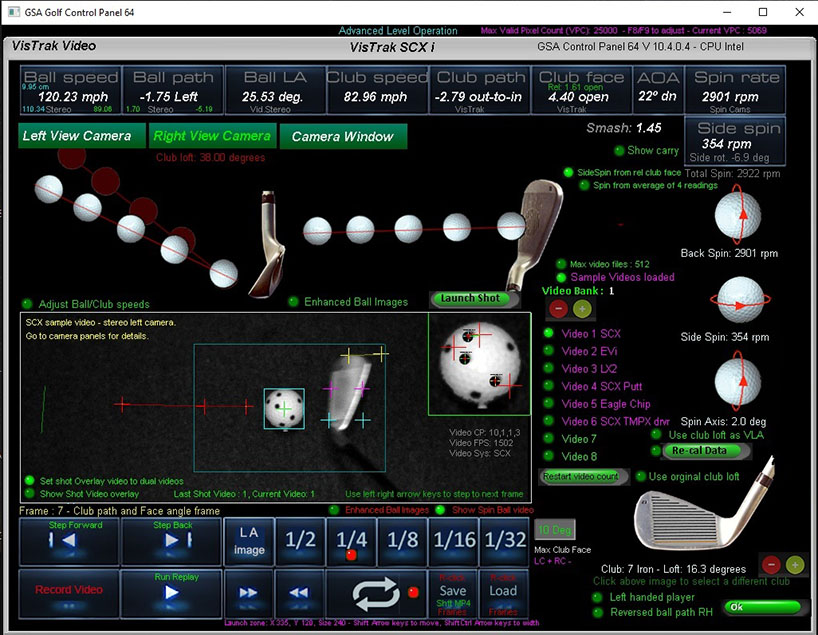

Sample Video 1 is from a stereo camera SCX system
Sample Video 2 camera 1 is from an EVi system showing the overhead view of the club striking the ball
Sample Video 2 camera 2 is from an EVi system showing the side view of the club striking the ball
Please note that sample videos were made by independent customers running the cameras at just 800 fps.
When running the cameras at the full speed of 1520 fps, you will get double the number of frames.
Sample Video 3 is from an LX2 system (at 1500 fps) showing the top and side views of the club striking the ball

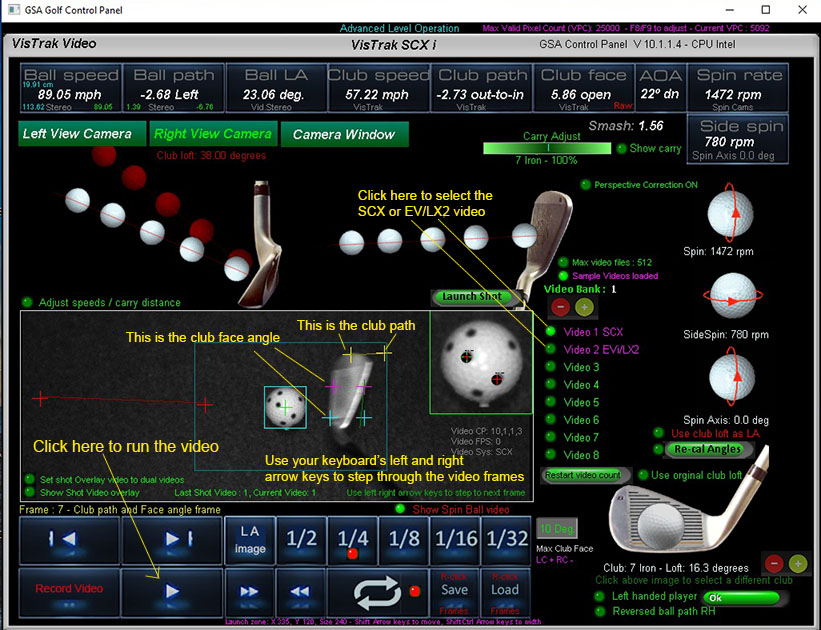

How to run the sample videos

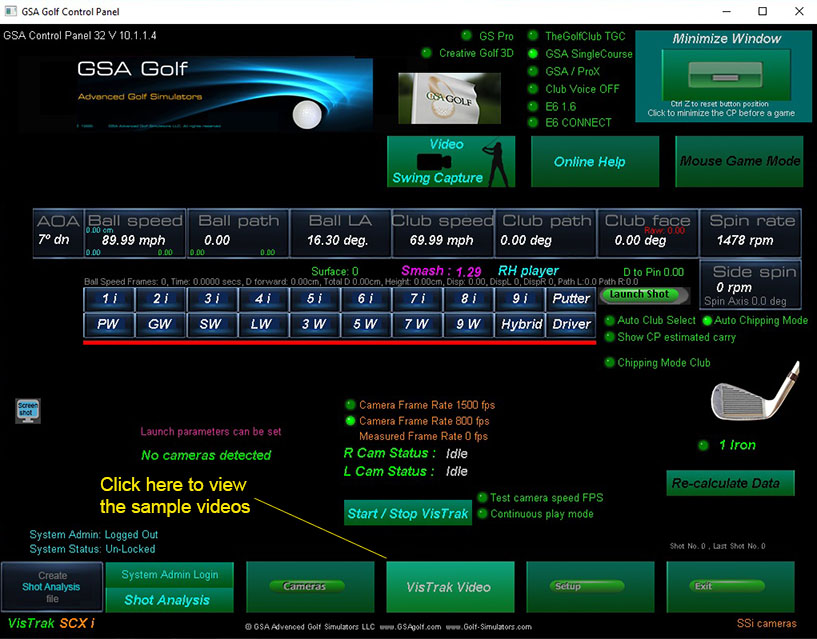

1. Select the VisTrak video from the Contro Panel's main panel
2. Click on the "Load Sample Videos"
Note: if you're running the system without cameras pluged in, then the sample videos will be automatically loaded

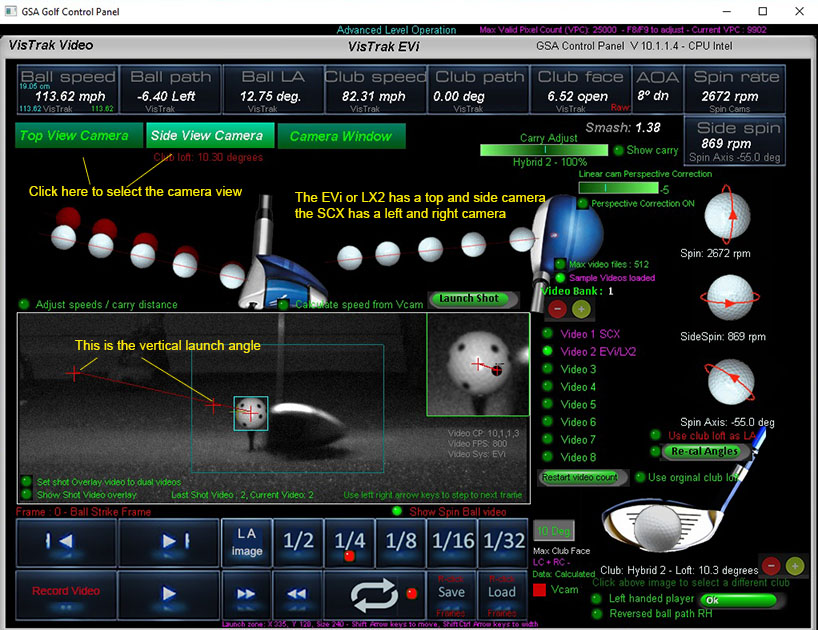

The cross hairs show the angles

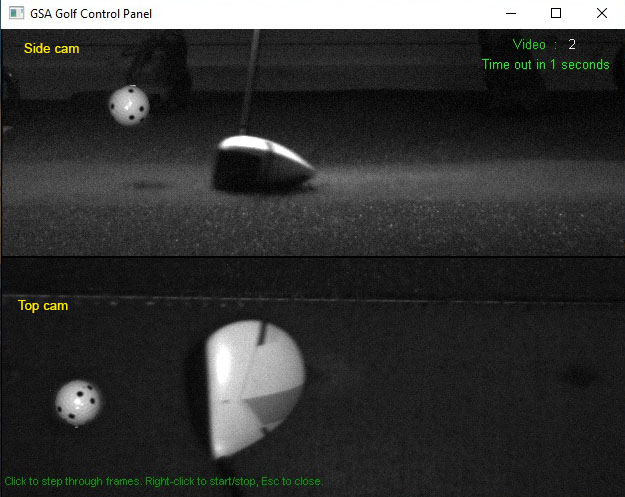

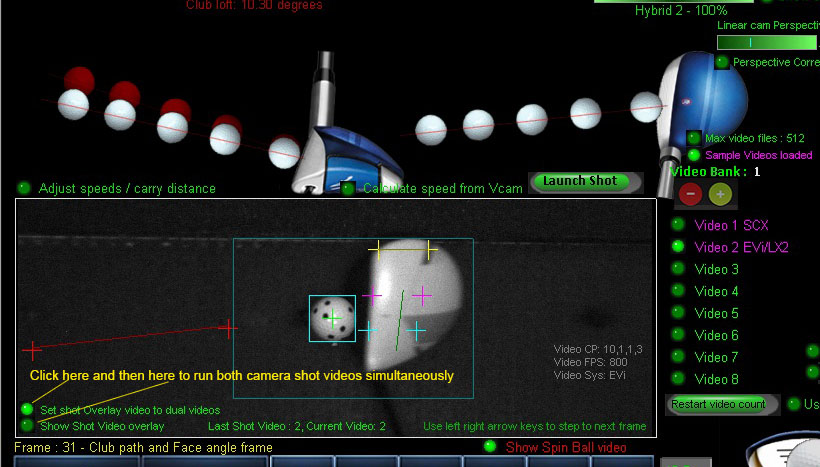

You can also run both camera shot videos simultaneously
The dual shot video can run as an overlay over your game software after ever shot
Note that all data shown in the sample videos is re-calculated in real time when loading the videos
i.e. it's not stored in the videos
This means that the data will change if you change any of the settings.
Re-loading the video will set the settings back to what they were before you made any changes
so you won't get lost
Like what you see?
Purchase this software to run with your own purchased cameras for just
$299
World's first and only golf simulator camera tracking software
for use with low cost commercially available hi-speed cameras
GSA Control Panel (CP) full version
with 2 camera licenses
$ 399.00
$ 299.00
The GSA Golf camera tracking software can be purchased separately for those that are purchasing their own cameras.
1500 fps Cameras are available on Amazon for $280 each.
All additional products required to build your own high-speed golf simulator camera tracking system are available on Amazon.
Including cameras, cables and lights.
Let us know the serial number of your camera(s) so that we can register it/them in your software download.
Purchase the software with Hi-speed Cameras
$699 each

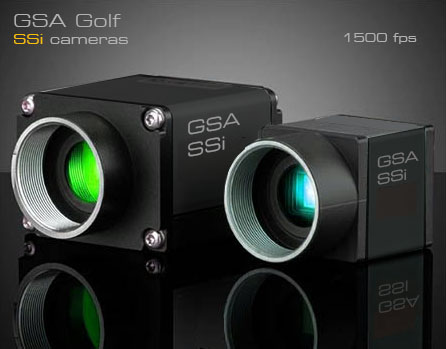

GSA Golf Hi-speed (1500 fps) ball and club tracking cameras with mounts, lenses, cables and software
Just add your own IR LED or Track Lighting
Price $699
Usually ships within 24 to 48 hours
Only 1 to 2 cameras required for full ball and club tracking
Buy with 2 cameras and save
Price $1,199
Using 2 cameras allows you to make up an SCX, LX2 or EVi system
VisTrak Product Overview
Build the SCX or EVi yourself
API
Application Program Interface
GSA Golf offer a free API for those that want to interface our Control Panel to their own software.
All relative shot data can be accessed. i.e. Ball speed, LA, HA, Spin Rate, Club speed, path and face angle
For those that are developing their own systems, you can now access the CP's shot data in real-time using the CP API.
Instructions are in the source code file.
New API test console application
Need technical help?
Installing TeamViewer
If you require remote access support, you need to have TeamViewer installed on your PC.

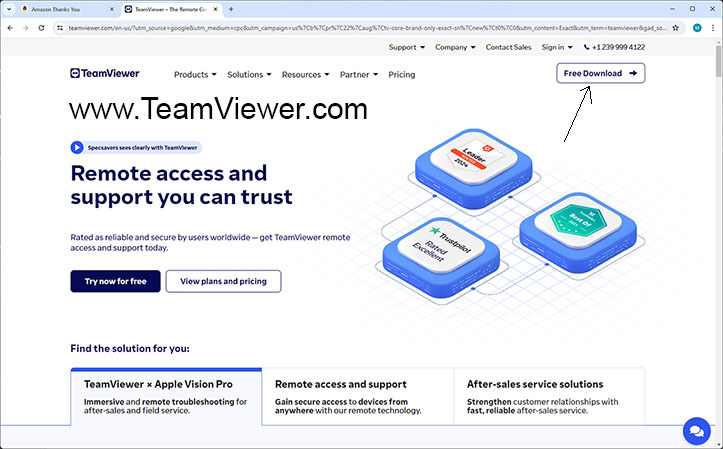

Go to www.TeamViewer.com and download the free version of TeamViewer
When calling us for a remote access support session, have your TeamViewer up and running with your ID and Password being displayed.
Technical Support
GSA Golf system minimum PC requirements
-
Intel i5 or above Processor with a desktop gaming PC
Warning! Do not use PC's with AMD processors or Laptops!
8GB RAM Nvidia 1070 Graphics Card or equivalent
25GB of Hard Drive Space
Windows 10 or 11 (Required)
Internet Connection
(Required if using 3rd party game software such as E6, TGC or GSPro)
USB3 port (Required)
Note: The cameras are USB3 cameras
and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports on the PC
Warning
If using 2 cameras, do not connect the cameras together with a Hub !
All cameras must be directly connected to separate USB3 ports on the PC
Use only the supplied powered USB3 extension cables
Warning : Laptops not recommended
Laptop PCs are usually not powerful enough to run the cameras and the gaming software (i.e. E6. TGC, Gs pro etc)
as the demand on the graphics card will be quite great and updating graphics cards on Laptops may not be possible.
